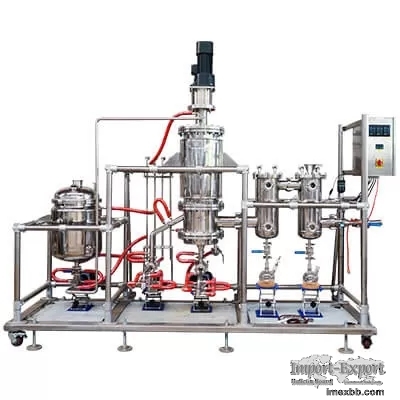

30L Jacketed Tank Wiped Film Evaporator Molecular Distillation System

Product Description
Wiped Film Molecular Distillation Equipment
Molecular distillation equipment is applied for creating a high value clear
distillate from Plant Oil Concentrates, such as refine CBD concentrates into
a golden clear distillate that can be infused into a variety of edible
products or fine oils to be used in vape cartridges or other products.

stainless steel molecular distillation equipment
Technical parameters of 10-25 L/h MDS-30 series short path molecular
distillation equipment:

Model

MDS-30C

MDS- , 30B

Material tank

30L jacketed tank

30L jacketed tank

2 sight glass at top, with insulated ball valve.

2 sight glass at top, with insulated ball valve.

Material charging

Gear pump

Gear pump

Flow 5L～30L/H

Flow 5L～30L/H

200W motor, electronic speed regulation.

200W motor, electronic speed regulation.

Evaporator

Evaporation area 0.2㎡

Evaporation area 0.2㎡

Film forming way: scraper (roller is optional)

Film forming way: scraper (roller is optional)

Material: 316L

Material: 316L

Mechanical seal (Magnetic seal is optional)

Mechanical seal (Magnetic seal is optional)

Film forming motor: 370W, mechanical constantly variable transmission, 200～
1000rpm/min

Film forming motor: 370W, mechanical constantly variable transmission, 200
～1000 rpm/min

Cold trap

1. 1㎡chiller cooling cold trap

1. 1㎡chiller cooling cold trap

2. 3L liquid nitrogen cold trap

2. 3L liquid nitrogen cold trap

Dual-purpose (chiller & liquid nitrogen cold trap dual purpose)

Dual-purpose (chiller & liquid nitrogen cold trap dual purpose)

Choose 1 in above 3 types

Choose 1 in above 3 types

Heavier component discharge

Gear pump

29# Grinding mouth adapter

Flow 5L～15L/H

10L glass bottle 1pcs, bottle holder 1pcs

200W motor, electronic speed regulation.

Lifting table 1pcs

Lighter component discharge

Gear pump

29# Grinding mouth adapter

Flow 5L～25L/H

10L glass bottle 1pcs, bottle holder 1pcs

200W motor, electronic speed regulation.

Lifting table 1pcs

Material pipeline

Jacketed insulation

Jacketed insulation

Shelf & assemble

304 stainless steel pipe

304 stainless steel pipe

stainless steel molecular distillation equipment structure
MDS-50CE molecular distillation design

stainless steel molecular distillation
stainless steel molecular machine
MDS-50CE molecular distillation
stainless steel molecular distillation
30L Jacketed Tank Wiped Film Evaporator Molecular Distillation System 7

vacuum distillation equipment factory

vacuum distillation equipment supplier
5-12 L /h molecular distillation system
High Efficient, stainless steel material’s quickly heat transfer rate,
guarantee extraction efficient is 1.4 times higher.
Automatic Control System, 24h Continuously Running: Automatic feeding and
collecting, convenient operation and save labor cost.
Successfully Solve The Problem Difficult To Replace Consumables, stainless
steel evaporator flange and pipeline flange.
24 hours Continuously Produce: Small Experiment – Pilot Research –
Industrial Type, whole produce process meet international process standard,
provide no deviation experimental conditions for you.
molecular distillation

molecular distillation
Technical parameters of MDS-10 series molecular distillation separation
equipment

Model

MDS-10 molecular distillation equipment ( A / B / C is different )

Material tank

Upgrade15L jacketed stainless steel tank

2 sight glass at top, with insulated ball valve.

Material charging

Gear pump

Flow 3L～15L/H

200W motor, electronic speed regulation.

Evaporator

Evaporation area 0.1㎡

Film forming way: scraper (roller is optional)

Material:316L

Mechanical seal (Magnetic seal is optional)

Film forming motor:370W, mechanical constantly variable transmission,200～
1000rpm/min

Cold trap

1. 0.4㎡chiller cooling cold trap

2. 3L liquid nitrogen cold trap

3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose)

Choose 1 in above 3 types

Heavier component discharge

Gear pump

Flow 3L～15L/H

200W motor, electronic speed regulation.

Lighter component discharge

Gear pump

Flow 3L～15L/H

200W motor, electronic speed regulation.

Material pipeline

Jacketed insulation

Shelf & assemble

304 stainless steel pipe

molecular distillation

molecular distillation machine

MDS-10CE molecular distillation

molecular distillation machine
2 stages molecular distillation equipment

3 stages short path distillation
Multistage molecular distillation equipment customize

CE certification reliable quality guarantee, 15 years quality manufacturing,
support one stop solution distillate cbd oil , contact info@toption-
china.com for free consult now.

industry stainless steel molecular distillation equipment certification

30L Jacketed Tank Wiped Film Evaporator Molecular Distillation System 7

vacuum distillation equipment factory

molecular distillation equipment application

vacuum distillation equipment supplier
1-3 L/h short path distillation equipment for CBD

lab short path distillation

short path distillation equipment types
Model

MDS-6C molecular distillation process

Material tank

3L jacketed stainless steel tank

2 sight glass at top, with insulated ball valve.

Material charging

Gear pump

Flow 0.5L～3L/H

120W motor, electronic speed regulation.

Evaporator

Evaporation area 0.06㎡

Film forming way: scraper (roller is optional)

Material: 316L

Mechanical seal (Magnetic seal is optional)

Film forming motor: 200W motor, electronic speed regulation.

Cold trap

1. 0.2㎡ chiller cooling cold trap

2. or 1L liquid nitrogen cold trap

3. Dual-purpose(chiller & liquid nitrogen cold trap dual purpose).

Choose 1 in above 3 types

Heavier component discharge

Gear pump

Flow 0.5L～3L/H

120W motor, electronic speed regulation.

Lighter component discharge

Gear pump

Flow 0.5L～3L/H

120W motor, electronic speed regulation.

Material pipeline

Jacketed insulation

Shelf & assemble

304 stainless steel pipe

short path distillation equipment structure

short path distillation equipment feeding tank

short path evaporator

30L Jacketed Tank Wiped Film Evaporator Molecular Distillation System 28

short path distillation equipment flask
molecular distillation machine
vacuum distillation equipment supplier
