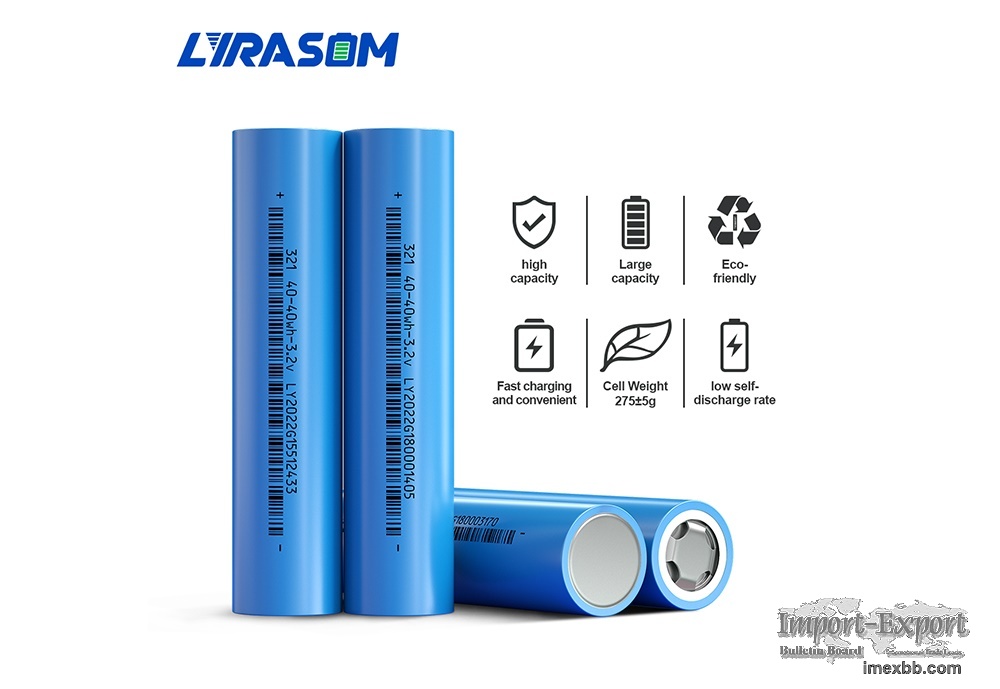

32140 3.2V 12.5AH LIFEPO4 BATTERY CELL

Discover the 32140 3.2V 12.5Ah LiFePO4 Battery Cell by Lyrasom - the ultimate
3.2 volt lithium ion battery solution. Enjoy longer cycle life, superior
safety, quick charging, lighter weight, and high efficiency with this 3.2 v
lithium battery. The perfect 3.2V Li-ion battery for a range of applications,
including renewable energy systems, electric vehicles, and backup power. Choose
Lyrasom for the best lithium 3.2 v cells on the market.

Specifications Of 32140 3.2V 12.5Ah LiFePO4 Battery Cell
Model LY32140-12500 LY32140-15000 Remarks
Nominal Capacity 12500mAh 15000mAh 0.5C discharge
capacity/ Test
temperature 25 ± 3℃
Minimum capacity 12000mAh 14500mAh
Nominal Voltage 3.20V 3.20V
Internal Impedance Cell: ≤3mΩ Cell: ≤3mΩ AC 1KHz after standard
charge
harge cut-off voltage 3.65 V 3.65 V
Discharge cut-off voltage 2.0V 2.0V
Standard charging mode 0.5C CC/CV cut off 0.05C 0.5C CC/CV cut off
0.05C

Standard discharge mode 0.5C CC, cut off 2.0V 0.5C CC, cut off 2.0V

Maximum continuous
charging current 0.2C 0.2C 0-10℃
0.5C 0.2C 10-20℃
1.0C 1.0C 20-45℃
0.5C 0.5C 45-55℃
Maximum continuous
discharge current 3C 2C

Maximum pulse
discharge current 6C（10S） 6C（10S）

Operating Temperature 0-55℃ 0-55℃ (15000ah) charging
-20℃~+55℃ -20℃~+55℃ Discharging
Storage Temperature -10℃ / +45℃ -10℃ / +45℃ Less than 1 month
-10℃ / +35℃ -10℃ / +35℃ Less than 6 months
cell weight 275±5g 300±5g
Energy density 145Wh/Kg 160Wh/Kg
This spec manual is the enterprise standard of Mianyang lithium new energy Co.,
Ltd, without authorization, any pirate or circulation is prohibited


Features Of 32140 3.2V 12.5Ah LiFePO4 Battery Cell：
Longer Cycle Life

Superior Safety

Quick Charge

Lighter Weight

High Efficient

Applications Of 32140 3.2V 12.5Ah LiFePO4 Battery Cell:
Power station energy storage

Scenery energy storage

Base station energy storage

Home energy storage / outdoor power supply

Extensive use

As one of 18650 cell manufacturers, we can offer kinds of 18650 cell bulk for
sale, if you are interested, please contact us.
