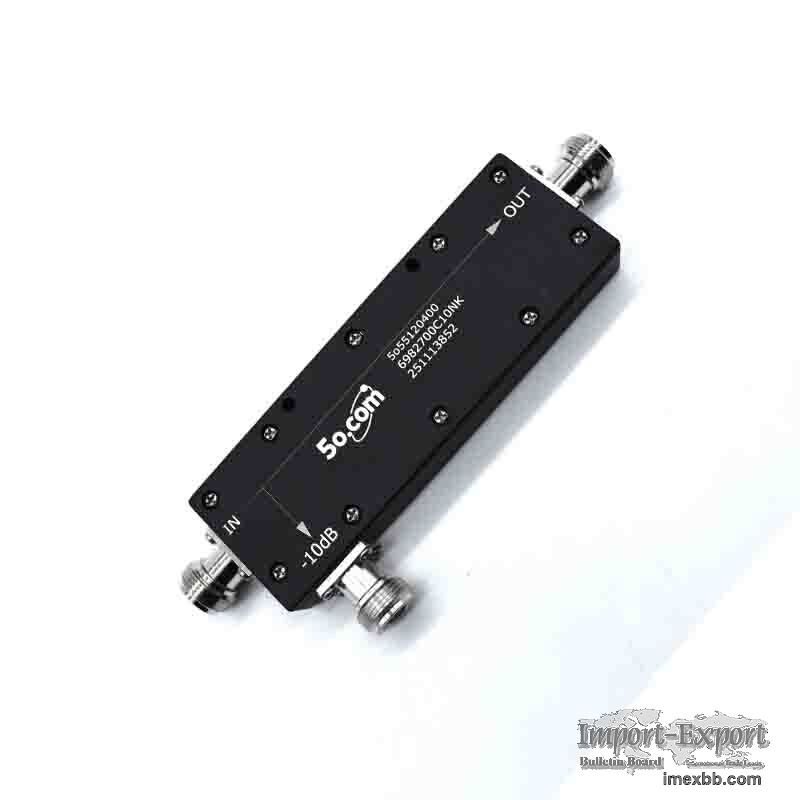

350 to 520MHz Directional Coupler UHF Coupler

Part Number:5o55143370
Frequency Range:360~520MHz
Nominal Coupling:5~40dB
Flatness:±1.0dB
Insertion Loss:0.2dB
Directivity:20dB
VSWR:1.25
Pow , er:200W
Connector Type:N
Temperature:-20 ~ +70℃
Dimension:143*37*20mm

Frequency Range 136MHz to 18GHz.
Built to the rigorous standards required for commercial implementations,
military and space.
Boasts a performance trio of low insertion loss, high isolation, and robust
power handling.
Custom design is available upon request.

Application
Applications of Radio frequency and Microwave systems.
Industrial and sensing applications.
Radio frequency mixing and filtering.
High power processing, anti-interference test , etc.
It supports a one-year standard warranty.

5o.com is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.
Focusing on cutting-edge fields such as 5G communication, satellite navigation,
radar electronic countermeasures, and aerospace, we provide customers with
high-performance microwave passive device integrated solutions.

Minimum Order: 1 pieces
