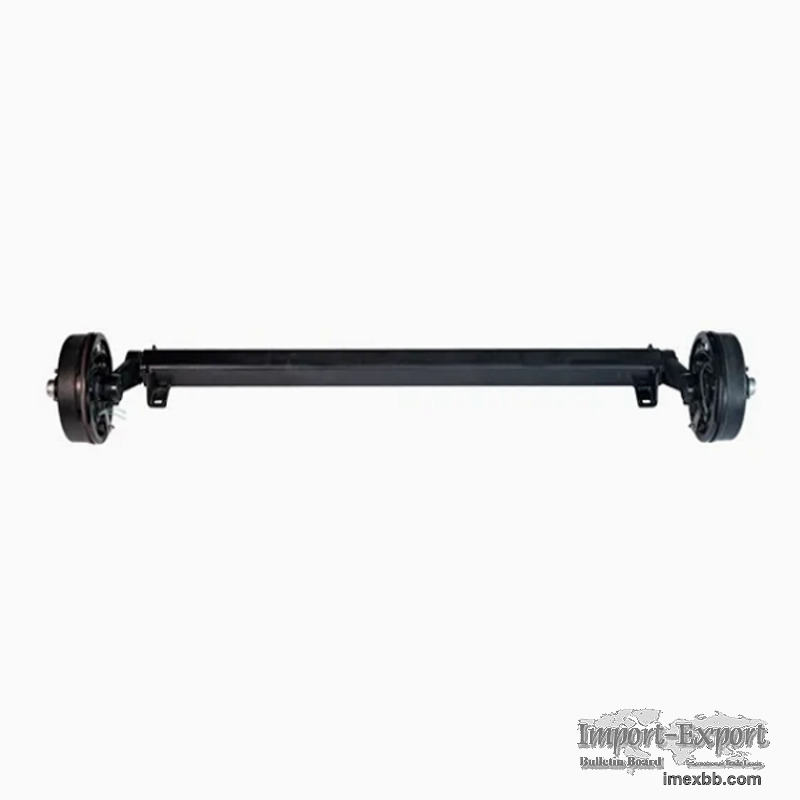

3500lbs Torsion Axle with Electric Brake

Weight Capacity 3500 lbs
Axle Beam Size 65 x 65 mm square tube
Hub to Hub Distance Customize based on customer requirement
Torsion Bar 40 x 40 mm solid steel
Torsion Arm Forged heavy-duty torsion arm
Mounting Bracket Customize based on customer requirement
Easy Lube Yes
Surface Finish Black painted
Electric brake specs Size: 10'' electric brake
Hand brake: option
Volt: 12V
Bolt pattern: 5 on 4.5''
Bearing: Inner: L68149/11
Outer: L44649/10
 Features
1. We supply 3500 lb trailer torsion axle with both electric brake and
hydraulic brake.
2. All brakes we supply are of the highest quality and conform to both American
and Australian standards.
3. They are easy lube axles with grease nipple and easy lube dust cap.
4. We supply various sizes of mounting brackets to make the axles fit on
different trailers easily.
