3in1 3W RGB SMD LED

3in1 3W RGB SMD LED
RGB LED is a common intersection of the three primary colors for imaging
purposes to achieve the effect of white light. 3535RGB is a kind of LED SMD
light beads that emit red, green and blue, forming various colors under the
combination of different currents, called full color.
Moonleds 3in1 3W 3535 RGB LED has stable quality because of its high thermal
conductivity and high light transmittance in packaging structure. In the
optical design, it solves the application of opto-electronic products for more
customers;  The 3535 RGB LED has a very good compatibility, operability. The
design of small distance between chips makes the LED excellent color mixing
performance. It has a high advantage over the application for stage lighting,
outdoor lighting, landscape lighting, etc.

Features of 3535 SMD RGB LEDs
• High cost performance
• Ceramic base
• high thermal conductivity
• Reflow soldering available
• Excellent color mixing performance
Buy 3535 RGB LED integrated driver chip from Shenzhen Moonleds to make your
own LED strip light. Although the 3.5mm x 3.5mm 3535 RGB SMD LEDs are very
easy to solder but still need extra care and attention.

SMD LED RGB 3535 3W Specification
Color Wavelength(nm) Voltage (V) Current (mA) Lumen (LM)
Part Number
RGB 620-630 2.0-2.6 350 50-70 MN-S3535RGB3
520-530 2.8-3.5 350 110-130
455-465 2.8-3.5 350 20-30

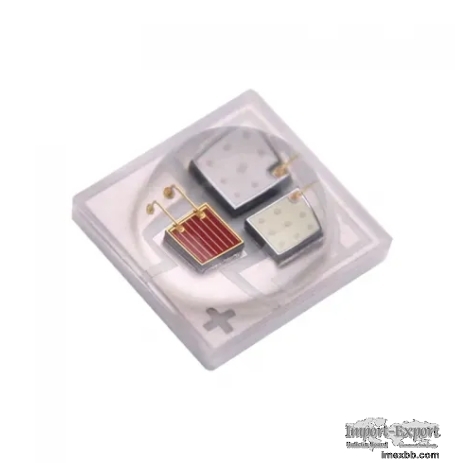

3in1 3W RGB SMD LED
Enlarge Click to Enlarge
