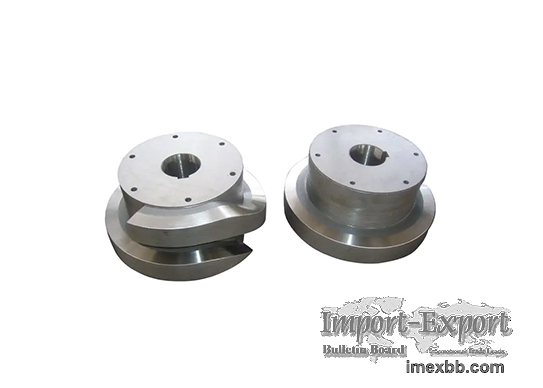

4/5 AXIS CNC MACHINING

We have 5 sets of 4-axis machining centers, 10 sets of 5-axis machining
centers, providing an annual processing capacity of 100000 pieces. China 4 axis
cnc machining, five axis CNC, processing parts from all kinds of screws,
propellers (fan blades), precision gears and other complex products that need
to be continuously positioned without replacing parts, especially large complex
shapes parts.

What is 4/5 Axis CNC machining?
4-axis CNC machining center and china 5 axis cnc machining center: the 4-axis
CNC machining center is defined by adding a rotation axis to the traditional
CNC machining center (3-axis). The rotation axis is composed of 4 axes by
selecting any one of axis A, axis B, and axis C. The affordable 5 axis cnc
machining center is composed of two axes selected from three axes.

4/5 Axis CNC machining Design Guideline
4Axis CNC Milling
The China 4 axis CNC machining processing capabilities and scope that our
company can provide are as follows:

Material copper, aluminum, iron, plastic, alloy, etc
item unit MODEL:50A MODEL:63A MODEL:80A
Stroke X-axis MM 720 1,000 1,200
Y-axis MM 700 800 950
Z-axis MM 650 900 900
Table Pallet dimensions mm 500x500 630x630 800x800
Maximum loading mass Kg 800 1,200 1,600
Spindle taper ISO 7/24 Taper NO.40 ISO 7/24 Taper NO.50 ISO
7/24 Taper NO.50
Spindle speed min-1 8,000(OP:12,00/20,000) 6,000(OP:12,000/20,000)
6,000(OP:12,000/20,000)
Feed rate Fast forward speed m/min 36 54 24
Cutting feed rate(Max) m/min 20 32 10
APC 2APC front swivel type 2APC front swivel type 2APC front swivel type
ATC Number of tools stored BOOK 60 60 60
Machine Mass Kg About 12,000 About 18,000 About 20,000

5Axis CNC Milling
The 5Axis CNC Milling processing capabilities and scope that our company can
provide are as follows:
Material copper, aluminum, iron, plastic, alloy, etc
item unit MODEL:50A MODEL:63A MODEL:80A
Stroke X-axis MM 720 900 1,200
Y-axis MM 850 900 1,000
Z-axis MM 850 900 1,050
A-axis - -90 -90 -90
B-axis - 360 360 360
Table Pallet dimensions mm 500x500 630x630 800x800
Maximum work size(Diameter x height) mm Φ750x700
Φ950x900 Φ1,200x1,000
Maximum loading mass Kg 650 700 1,200
Spindle taper ISO 7/24 Taper NO.50 ISO 7/24 Taper NO.50 ISO
7/24 Taper NO.50
Spindle speed min-1 12,000(OP:20,000) 6,000(OP:12,000/20,000)
12,000(OP:20,000)
Fast forward speed XYZ axes m/min X:24 YZ:36 X:12 YZ:24
X:24 YZ:24
A-axis min-1 6 6 6
B-axis min-1 12 10 10
APC 2APC front shuttle (OP:6/8/10) 2APC front shuttle (OP:6/8/10) 2APC
front shuttle (OP:6/8/10)
ATC Number of tools stored BOOK 60 60 60
Machine Mass Kg About 18,000 About 25,000 About 30,000

What is the Difference Between 4/5 Axis CNC machining
Compared with the ordinary CNC machining center (three-axis), the four-axis
increases the angular rotation of parts, and the five-axis increases the
functions of angular rotation of parts and angular rotation of tools (both slow
linkage), so that the ordinary shenzhen cnc machining machine tool has the
function of machining more complex parts. The main difference between them is
that the complexity of processing parts is different. The range of five-axis
processing is wider than that of four-axis processing. At the same time, the
cost of five-axis processing is also higher. Generally, it is more suitable for
use in the product sample stage. Five-axis processing includes Aeroengine
Blades, shells, automobile, and shipbuilding industries. 5 axis CNC service is
usually very suitable for extremely complex and strong parts that must be cast,
such as parts with high relative accuracy and parts that cannot be clamped
twice. Four-axis machining parts are usually parts that cannot be machined by
ordinary three-axis CNC, such as turbine, vortex rod, fan blade, wave wheel,
and other curved surface and groove machining.

Applications of 4/5 Axis CNC machining
The 4axis CNC center can adapt to the parts processing in the mold industry,
automobile parts and wheel hub processing, automatic machining, and 4 axis
machining is also widely used in aerospace and other fields. Industrial
upgrading, intelligent manufacturing, unmanned factory and automatic assembly
line are the most direct requirements of the processing and manufacturing
industry for high-end machining machines. The application scenarios of four-
axis and five-axis CNC processing are as follows:

Aerospace industry: from Boeing 787 Aircraft propeller parts (titanium alloy or
polymer materials), turbocharger (metal) parts, gearbox shell processing
(casting), hydraulic system and component processing (casting),
electromechanical component parts (metal), engine component processing (metal),
landing gear assembly (integrated molding), UAV components (carbon fiber shell,
propeller), etc. of Airbus A380 large aircraft.

Minimum Order: 1 pieces
