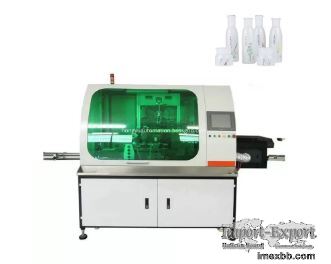

4-6bars CNC Screen Printing Machine Circular Arc Automatic Screen Printing

Auto multi funciton CNC screen printing machine for bottles



It can meet the circular arc surface printing requirements of cylindrical, oval
cylindrical and other special-shaped containers, and is compatible with
containers made of plastic, glass, metal and other materials.This machine
realizes the intelligent operation of the whole machine through programmable
controller (PLC) and advanced touch screen.





Auto multi funciton CNC screen printing machine for bottles General
Description:

1,Automatic loading system with multi axis servo robot

2,Servo driven transfer system

3,Automatic printing system with all servo driven:printing head,mesh
frame,rotation,

4,Super quick and easy change over from one product to anothe.All parameters
automatic setting simply in touch screen.product change is 15minutes only per
color.

5,All Ethercat servo motors with industrial PLC control&touch screen operation
system,

6,Automatic unloading with servo robot

7,With anti-static

8,With UV/LED UV

9,CCD can for bottom and for bottle body



Auto multi funciton CNC screen printing machine for bottles Tech-data:

Max.speed(360°print)(pcs/min):R , ound 10-40 Oval 20-40 Square 20-40

Power:380VAC 50/60Hz

Air Pressure: 4-6bars

Printing Diameter:10-40mm

Printing Length:20-100mm

Printing stroke left/right:125mm

Weight:400kgs

Packi , ng Size:L:1400mm W:1300mm H:2150mm
