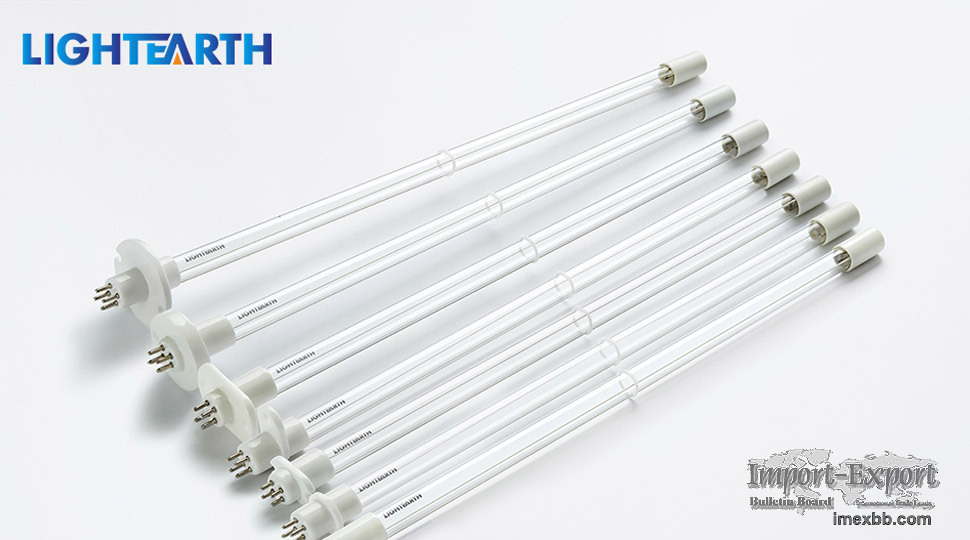

4 Pins UVC Germicidal Lamp

Product features: 4 pin uv lamp

Product functions: water treatment sterilization, air sterilization, surface
sterilization, microbial killing, photooxygen catalysis, photodecomposition,
surface modification, etc.

Main applications of 4 pin uv lamp

Air sterilization, air purification, water treatment sterilization, surface
treatment, food processing sterilization, dairy products sterilization,
packaging materials sterilization, medical instrument sterilization, surface
treatment, dried fruit sterilization, medicine sterilization, shoe industry
mildew prevention, bag leather industry mildew prevention, assembly line
sterilization and so on.


Specification of 4 Pin UV Lamp

TYPE TYPE POWER DIAMETER LENGTH CURRENT VOLTAGE UVC OUTPUT
Ozone Free Ozone W mm mm mA V μw/cm²
LEG118T5L LEG118T5VH 6 15 118 425 25 13
LEG150T5L LEG150T5VH 8 15 150 425 27 20
LEG212T5L LEG212T5VH 10 15 212 425 30 26
LEG287T5L LEG287T5VH 14 15 287 425 41 40
LEG303T5L LEG303T5VH 15 15 303 425 43 43
LEG357T5L LEG357T5VH 17 15 357 425 51 57
LEG436T5L LEG436T5VH 21 15 436 425 62 72
LEG550T5L LEG550T5VH 28 15 550 425 69 85
LEG793T5L LEG793T5VH 37 15 793 425 112 120
LEG843T5L LEG843T5VH 40 15 843 425 120 135
LEG1148T5L LEG1148T5VH 55 15 1148 425 165 170
LEG1554T5L LEG1554T5VH 75 15 1554 425 220 220
LEG1630T5L LEG1630T5VH 79 15 1630 425 231 228


Matters Need to Know about Using 4 Pin UV Lamp
This 4 pin UV lamp/4 feet UV tube light product must not be used to purify
flammable and explosive or corrosive gases; the treated exhaust gas must be
discharged to the outdoors.

The ultraviolet light beam is harmful to human eyes and skin, please use with
caution and care.

Recommended use environment of 4 pin UV lamp: ambient temperature -+10-40℃;
humidity: 20-90%; airflow temperature <80℃.

When installed 4 pin UV lamp outdoors, there should be rainproof and sunshade
canopy facilities to avoid affecting the service life of the product.

LIGHTEARTH is a professional uv tube supplier, we provide uv germicidal lamp
254 nm, germicidal tube, 185 nm uv lamp, uv tube light 4 feet, uvc tube and
etc.if you want to know more, please contact us.
