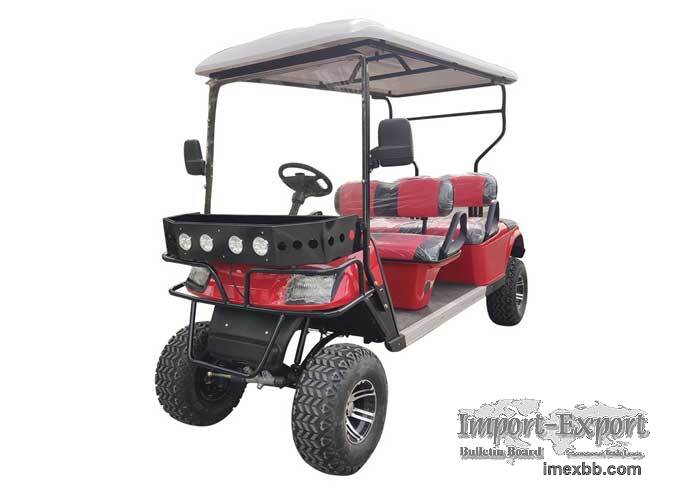

4 Seater Lifted Golf Carts

Two rows of seats with golf bag straps in the rear for up to 4 people. Equipped
with independent suspension and larger wheels and off-road tires, the lifted
hunting golf carts has higher climbing and off-road performance and is ideal
for hilly golf courses.

Specification of 4 Seater Lifted Electricgolf Carts
Technical Parameters
Overall Dimension 2910*1350*2200mm
Passengers Capacity 4
Max. Speed 40km/h & 25mph
Max. Travelling Range 80-100km
Slope Climbing Capacity 30%
Turning Radius 3m
Ground Clearance 300mm
Brake Distance ≤4m
Wheelbase 1700mm
Front/Rear Tread 950/1000mm
Weight 580kg
Electric System
Motor AC, 48V, 5kW
Controller 48V, 450A
Battery Type Lead Acid, 150Ah, 8V*6pcs
Charger Intelligent high-frequency car charger
Charging Time 8 hours
Steering “Rack & Pinion” Steering
Motivation Control
Braking System Front Disc Brake, Rear Drum Brake, EMB system
Front-axle And Suspension Independence suspension
Rear-axle and Suspension Integral rear axle
Tire 215/35-12, with alloy rim
Exterior
Dashboard LCD instrument, Multifunction, show time, speed, driving range,
battery capacity, etc
Light Front & rear combination LED lights
Seat Bus cold foam sponge + high resilience PU leather fabric
Body Material Steel frame + ABS engineering plastic molding material

As one of electric golf cart dealers, we will do our best to meet all the needs
of customers.

Minimum Order: 1 pieces
