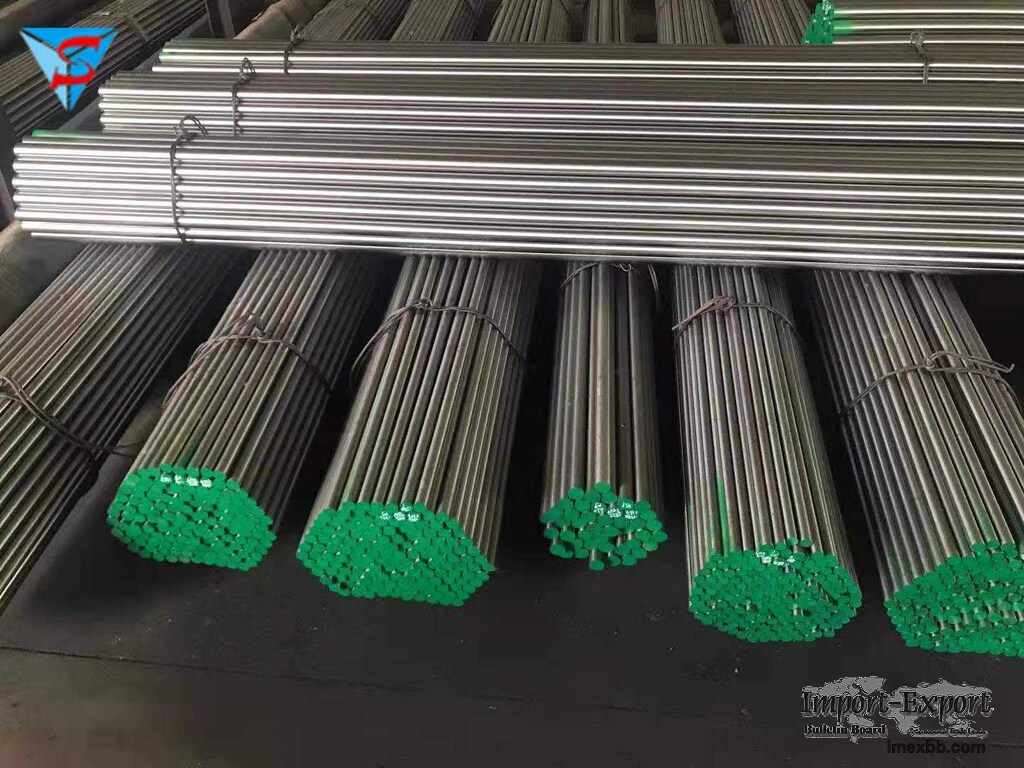

4340 solid bar 4340 solid bar steel high tensile 4340 solid bar alloy

Description of 4340 chromoly steel:4340 alloy steel is an iron-based alloy
containing nickel, chromium and molybdenum. The relatively high carbon content
gives this alloy exceptional strength in applications where severe service
conditions exist.4340 alloy steel has high strength, good toughness and good
ductility. In addition, the alloy is not prone to embrittlement.

4340 steel application: It is used as important quenched and tempered parts
that require good toughness, high strength and large size, such as heavy
machinery and high-load shafts, turbine shafts with a diameter greater than
250mm, helicopter rotor shafts, turbojet engine turbine shafts, blades, high
Loaded transmission parts, crankshaft fasteners. Gears, etc.; can also be used
for rotor shafts and blades whose operating temperature exceeds 400 °C; can
also be used to manufacture important parts with special performance
requirements after nitriding treatment, and can be used for ultra-high
temperature after low temperature tempering or austempering. Use of strength
steel.

4340 Steel Features:It has high strength, toughness, excellent hardenability
and stability against overheating, good plasticity and heat resistance, uniform
material, high working reliability, weldability, non-leakage, and simple steel
structure production. Short construction period and good assembly.

4140 steel processing technology:

Heat treatment standard: quenching at 850℃, oil cooling; tempering at 560℃,
water cooling, oil cooling;

Metallographic structure: tempered sorbite

Heat treatment:

1. Normalizing: Heat the furnace to 900°C~930°C, keep the thickest cross
section per inch at this temperature for one hour, and cool in air.

2. Heat to austenitizing at a temperature of 860℃~885℃, and keep the thickest
cross section per inch for one hour at this temperature

3. Normalizing or oil quenching, and cooling to a maximum temperature of 121°C

4. Temper at a temperature that achieves the following mechanical properties.
The thickest cross-section per inch is held for one hour at the tempering
temperature, and the tempering temperature range is 640 ° C ~ 680 ° C

5. For each heat treatment process, a heat treatment chart must be drawn.

6. The mechanical property test shall be carried out in accordance with the
stipulations of ASTM. A-370. The sample material used for the test shall be cut
from the test bar of the same furnace steel. The casting or forging represented
by the sample and the test bar shall be in the same furnace. The test bar shall
be heat treated in the same furnace together with the charge.

7. The mechanical properties should meet the following requirements: (Tested
with a test bar, sampling according to APT 6A, 110K standard) - Tensile
strength minimum lb/inch (862) Yield strength minimum lb/inch 110.000 (758) 2
inches The minimum value of elongation is 15% and the minimum value of section
shrinkage rate is %40. Brinell hardness HB285 ~ take, the casting or forging
represented by the sample and the test bar must be in the same furnace, and the
test bar should be heat treated in the same furnace together with the charge.

8. The mechanical properties should meet the following requirements: (tested
with test bars, sampling according to APT 6A, 110K standard) - minimum tensile
strength lbs/inch (862) minimum yield strength lbs/inch (758) 2 inches Minimum
elongation %15 Minimum shrinkage of section %40 Brinell hardness HB285~352

9. Marking: Each part shall be printed with heat treatment marks and hardness
with low stress steel stamp.
