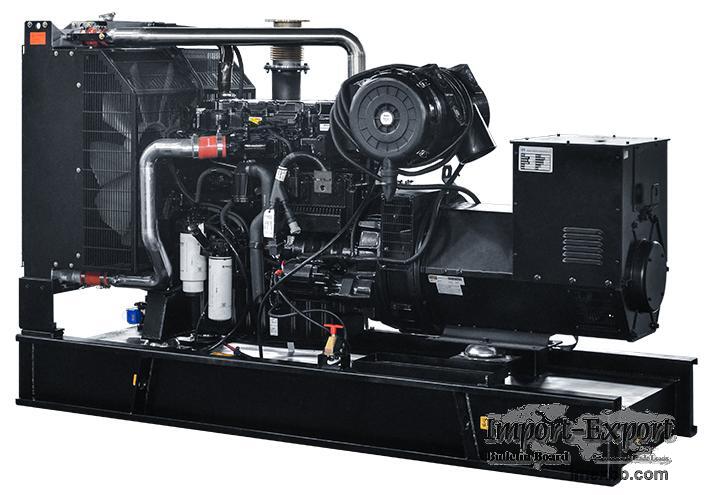

463KVA Perkins diesel generator set

Prime power:370KW/463KVA
Standby power: 407KW/509KVA
Engine model:2506A-E15TAG1
Rated voltage: 230V/400V
Cylinder: 6 inline
Cycel: 4 Stroke
Aspiration: Turbocharged
Broe*Stroke:137*171mm
Compressi , on rateio:18.2:1
Speed Governor: Mech
Cooling system; Forced water cooling cycle
Lube oil: 15L
Consumption:213g/kw.h
Startup mode: DC24
Control Panel: Smartgen/Deepsea
Alternator:Stamford,Marathon,< , br>Leroysomer.Evo Tech,EngGA etc
Excitation mode: Brushless self excitation
Voltage range:≥5％
Voltage fluctuation range:≤±5％
Frequency:50Hz
Rated speed:1500rpm
Phase: 3phase 4 wire
Power factor: 0.8
Insulation grade: H
Protection level:IP23
Warranty: 1 year
Size: 3300*1350*1800mm
Weight: 3650kgs

Minimum Order: 1 sets
