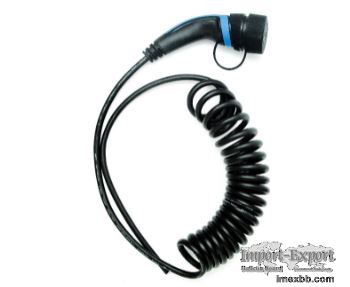

480V 32A 3 Phase Tethered Spiral EV Charging Cable 3.5kg

Type 2 Vehicle 5m Tethered Spiral Cable Open End TPU 32A 3phase


Product Description:

The 22kW, Three Phase 32A Type 2 tethered charging cable is designed for
charging in mode 3, it is suitable for connection and charging from all private
and public AC stations. The connector has an ergonomic shape, which ensures
easy and comfortable handling and connection. When the cable is connected, it
is protected against the ingress of particles and water.


The protective cover has a degree of protection IP55 and protects against
ingress of dust. This open-end cable replacement is to be integrated to the
charging station. You can charge your EV that has Type 2 port. The product has
a nice appearance, a hand-held ergonomic design and is easy to plug.


Product Specification:

Vehicle connector type Type-2 Female
Available lengths 5m or customized
Open End Thread Charging Station
Cable Color Black / Green / Blue or customized
IP class IP55
Rated current 32A / 480V - up to 22kW,three-phase
operating temperatur -30 ℃ to 50 ℃
Grounding Isolated ground
Mating cycles 10,000
Cable thickness 5*6mm² + 2 *0.5mm²
Certification TUV, CE
