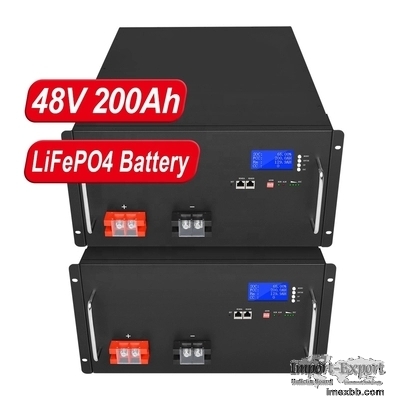

48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart

Product Description
Factory Wholesale BMS Built-in LiFePO4 100Ah 200Ah battery 48V 1000W Golf Cart

Specification
Electrical
Characteristics ,
Nominal Voltage
48V
Nominal Capacity
200Ah@0.2C
Energy
10240Wh
Int , ernal Resistance
≤35mΩ
Cycle Life
2000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity
Self Discharge
≤3.5% per month at 25℃
Standard Charging
Max.Charging Voltage
14.0~14.6V
Charging Mode
At 0℃~45℃ temperature, charged to 14.6V at a constant current of 0.2C, and
then,changed continuously with constant voltage of 14.6V until the current was
not more than 0.02C
Charging Current
200A
Max.Charging Current
200A
Standard Discharging
Discharging Current
200A
Max. Continuous Current
200A
Max.Pulse Current
210A(<10S)
Discharging Cut-off Voltage
40.0
Operating Condition
Charge Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Discharge Temperature
-20℃ to 60℃(-4℉ to 140℉) @60±25% Relative Humidity
Storage Temperature
0℃ to 45℃(32℉ to 113℉) @60±25% Relative Humidity
Water Dust Resistance
IP54
Structure
Cell & Format
LFP54H4K1 54174201
Casing
Mental
Dimension(L*W*H*TH , )
482*650*244mm
Weight
Approx.81Kg
Dis , play
LCD
Details Images
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 0
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 1
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 2
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 3
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 4
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 5
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 6
Test Chart
48V 100Ah 200Ah Lifepo4 House Battery 1000W Golf Cart 7
Product Advantage

◆ Using the technology of lithium iron phosphate cell, superior safety,
thousands of cycles, 100%DOD, under normal conditions.




◆ Built-in automatic protection for over-charge, over discharge, over current
and over temperature.



◆ Free of maintenance .




◆ Internal cell balancing.




◆ Lighter weight: About 40% ~50% of the weight of a comparable lead acid
battery.




◆ Can be charged using most standard lead-acid charges (set).




◆ Wider temperature range:-20℃~60℃.




◆ Support for Series application expansion (up to 51.2V) and two in parallels.
