48V 18ah 1000W Ebike Downtube Battery Bottle Shape Fits Accu Fahrrad

Product Description
48V18ah 1000W Ebike Battery Downtube Mounted Battery 20ah E-Bike Battery
Lithium Ion Bottle Shape Fiets Accu Fahrrad
Product Description
Battery Specifications
Model Number TL-EB-H48
Application Electric Bicycles/Scooters
Rated Voltage 48V
Rated Capacity 10.4ah/11.6ah/13.6ah
Motor Customized
Configuration 13S4P
Battery cells Chinese cell /Samsung cell
Battery Type Li(NiCoMn)O2 18650
Size L361mm * W90mm * H92mm
Discharge Cut-Off Voltage 36.4V
Charge Voltage 54.6V
Operate Temp. Charge 0~45 ℃
Operate Temp. Discharge -20~60℃
Cycle Life > 800 cycles
Weight 2.5-3.5KG
Place of Origin Shenzhen,China
Warranty 1years

48v18ah 1000w downtube mounted battery 48v 20ah e-bike battery lithium ion
battery
48V18ah 1000W Downtube Mounted Battery 20ah E-Bike Battery Lithium Ion
Bottle Shape Fiets Accu Fahrrad Akku Akku Fur Elektrofahrrader


Notice:
This battery can use for 48V 100W---1200W electric bicycle motor

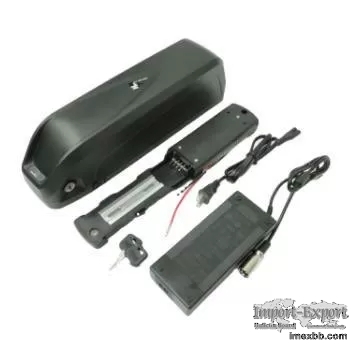

Parts included:

1.48V 18ah Lithium Battery with PVC case
2. 30A Maximum Continuous Discharge Current Built-in BMS board
3.54.6V 2A Charger (With EU/US/UK/AU AC Charger plug you can choose )
4. Double key,discharge wire
Battery specification:
Battery Model:48V 18Ah
Nominal Capacity (AH) :18AH
Nominal Voltage (V):48V
Cell Source Resistance (mΩ) :Less 40mΩ
Cell Specification :3.7V 3.5ah/2.6ah/2.9ah18650 cell
Cell Combination :13-series
Discharge Cutoff Voltage (V) :38+-1V
Charge Cutoff Voltage (V) :54.6V
Rated Discharge Current (A): 30A
Maximum peak discharge current (A): 45A
Maximum Continuous Discharge Current (A) :20A
Charger mode:CC/CV(Constant Current Constant Voltage)
Standard Charge Current (A) :2A
Charge Time under Standard Charge Current :10h
Fast Charge Current (A):5A
Charge Time under Fast Charge Current:4h
Charge Temperature Range :0-45°C
Discharge Temperature Range:-20-65°C
Life cycle:more than 1000 cycles
Battery Size :365*110*90MM
Battery Weight:About 6kgs
Chemical: Li-Ion NiCoMn.
48V18ah 1000W Downtube Mounted Battery 20ah E-Bike Battery Lithium Ion
Bottle Shape Fiets Accu Fahrrad Akku Akku Fur Elektrofahrrader

48V18ah 1000W Downtube Mounted Battery 20ah E-Bike Battery Lithium Ion
Bottle Shape Fiets Accu Fahrrad Akku Akku Fur Elektrofahrrader
36/48V Capacity 17.5Ah (13S5P) with Usb 2.0 Port suitable for 1000W motor.
Max Constant Discharge Current: 25A, Charger: 54.6v 2A
Black color and LED Power Display,perfect product performance make enjoy
long distance cycling. The USB port can charge your phone and other devices
Improved Jumbo Shark case with ON/OFF Switch and built in USB port ♦ Key
lock releases pack from bike
Comes with a charger, when charging, please open the switch and charge for
at least 8 hours, when the red light of charger turns green, it means fully
charged.Size of the battery 370mm*90mm*110mm, Includes a USB socket.


48V18ah 1000W Downtube Mounted Battery 20ah E-Bike Battery Lithium Ion
Bottle Shape Fiets Accu Fahrrad Akku Akku Fur Elektrofahrrader
