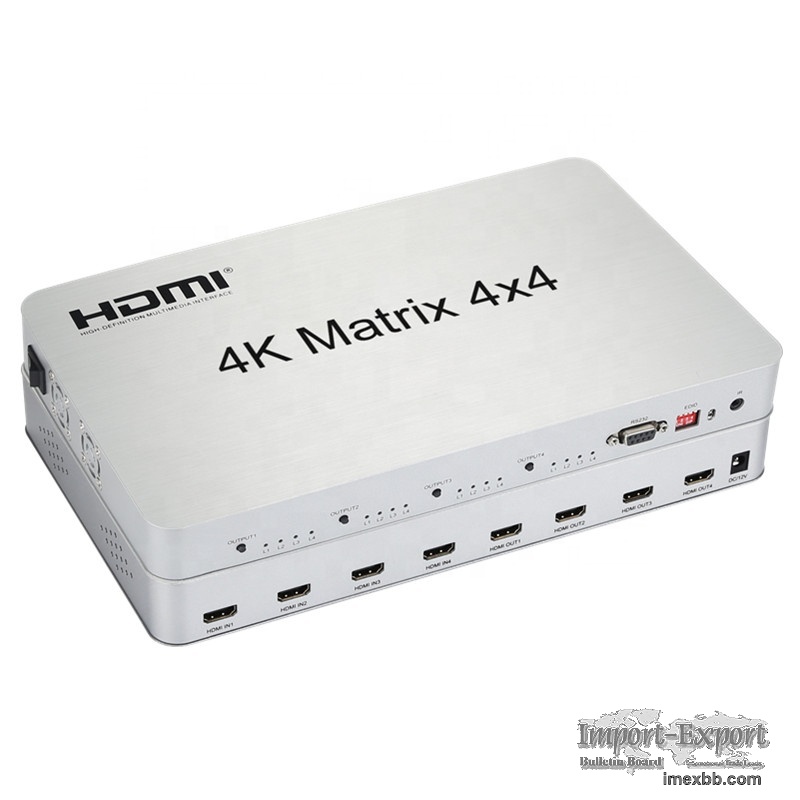

4K HDMI Matrix 4x4 HDMI switcher 4 input 4 output 3D 1080P RS232

4K HDMI Matrix 4x4 HDMI switcher 4 input 4 output 3D 1080P RS232

This HDMI matrix is a 4-by-4 HDMI true matrix. It allows any source (Blue-Ray
player, HD DVD player, satellite receiver, game system, etc.) to be shown on
the any of the four displays simultaneously, no matter the source is HDCP or
not. It supports RS232 remote control.

HDMI matrix 4x4 has the ability of equalization and amplification to ensure
HDMI signal's transmission through long cable without quality loss.This HDMI
matrix offers solutions for digital entertainment center, HDTV retail and show
site, HDTV, STB, DVD and projector factory, noise, space and security concerns,
data center control, information distribution, conference room presentation,
school and corporate training environments.

FEATURES:
*Support HDMI 1.4
*Support 3D
*Support high definition resolutions 4Kx2K,1080p, 1080i, 720p and other
standard video formats
*Support audio format DTS-HD/Dolby-trueHD/LPCM/DTS/DOLBY-AC3/DSD
*Via RS-232 control,the machine can upgrade the software, the input and the
output can be switched by computer
*The four outputs could show the same or different source simultaneously

Specification:
HDMI resolution: 4K /1080p/1080i/720p/576p/576i/480p
Support color format: 8/10/12bit
Support audio format: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
M , ax baud rate: 10.2GBPS
Input and output TMDS signal: 0.5~1.5Volts p-p
Input and output DDC signal: 5Volts p-p (TTL)
Max working current: 1.5A
Power adapter format: input:AC(50HZ, 60HZ) 100V-240V;output DC12V/2A
Operating Temperature range: (-15 to +55℃)
Working humidity range: 5 to 90%RH (No Condensation)
Dimension (L x W x H): 410*170*45(mm)
Weight: 1850g

Operating and Connecting:
1.Connect HDMI cable from HDMI source device into HDMI matrix input port
2.Connect HDMI cable from HDMI matrix Output port into display
3.Connect 12V External power adapter to the HDMI matrix
4.How to use RS-232 port?
Through RS - 232 port you can update software and monitor the state of the
input and output signals. And can switch signals. When connects the computer,
customer can easily switch the signals via computer.

Package Contents:
1. HDMI Matrix
2. IR Remote Control
3. IR cable
4. 12V DC Power adapter
5. User Manual
