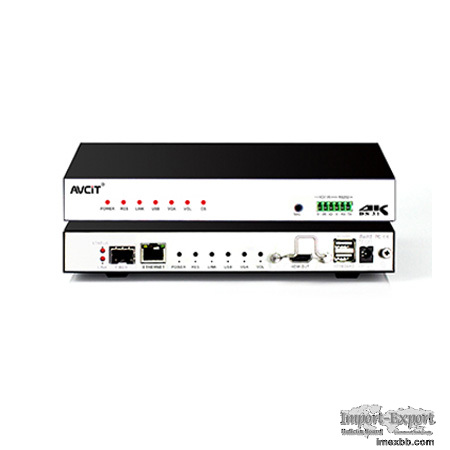

4K KVM Decoder

The H.265 based DSIII 4K KVM Decoder (HDMI) is designed to receive UHD video
+ USB-HID + RS232/485 + IR over standard 1GB IT network, with low latency
and high image quality. It would be configured as a KVM Decoder to combine
as an integrated and visualized Video Wall Controller & KVM over IP System.
Applications: Control Room, Network Operation Center (NOC), Security
Operation Center (SOC), Emergency Operation Center (EOC), Joint Operation
center(JOC), Airport Operation Center(AOC), Traffic Operation Center(TOC),
Board Room, Meeting Room etc.

Industries: Government, Public Security, Finance, Telecomm, Energy &
Utility, Oil & Gas, Transportation, Aviation, Military & Defense, Armed
Force, Smart City, Broadcasting, Sea Port, Offshore, Enterprise etc.

Specification of 4K KVM Decoder - HDMI
Video Port HDMI OUTx1
USB Port USB2.0 x2
Audio Port MIC x1
Control Port RS232 x1, IO/IR x1
Network Port RJ45x1, Fiber Optic x1
Resolution Support 3840x2160p and downward compatibility
Protocol H.265/H.264, RTSP, ONVIF, HDCP and HDMI 2.0 compatible with
DVI 1.0
Bandwidth 4~20 Mpbs configurable for per streaming
Transmission Distance 90 meters over CAT6 cable or 10 km over fiber
Audio Control audio matrix switching, audio mixing, embed and de-embed
feature.
Power Supply PoE (802.3 AT) or 5V 3A Power Adapter

Highlights of 4K KVM Decoder - HDMI

Highlights of 4K KVM Decoder - HDMI
Two-way audio and USB camera transmission for making video call between
operators.

Highlights of 4K KVM Decoder - HDMI
Distributed computing technology, no need additional server to process
signal.

Highlights of 4K KVM Decoder - HDMI
Redundant power supply by both PSU and POE available.

AVCIT provide multi display controller, video wall processor, kvm receiver,
kvm ethernet switch, etc. For more information, please feel free to contact
us!
