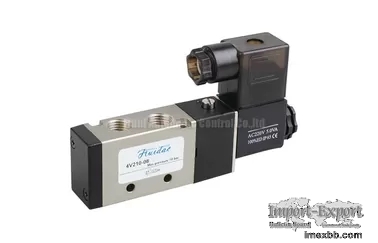

4V210-08 Pilot Operated Solenoid Valve For Pneumatic System Directional Control

Airtac Type18mm,22mm,27mm,34mm, 5/2 single acting solenoid valve
1/8"~1/2",aluminum body material

2 Position 3 Way Pneumatic Control and Solenoid Operated Directional Control
Valve,pilot Operated

Quick Detail:



* Airtac Type Solenoid valve 4V Series
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* Life cycle 10000000 times
* Pipe joint and Namur joint type for option
* Din connector and outlead wire electricity connecting for selectable
* Metal Manual Override ensure stability when power failure or necessary
functional motion
* High quality pilot armature ensure rapid and sensitive feedback when connect
eletricity
* IP65 class Electromagnetic Induction Coil,low consumption,long service life
* Mature products,cost effectively



Applications:



4V solenoid valve used as directional control component to change the direction
of working medium to drive a executor component normally a cylinder to realize
a cycle motion



Specifications:

4V210-08 Pilot Operated Solenoid Valve For Pneumatic System Directional Control
0

ORDERING CODE

4V

2

10

08

B

AC220V

W

Type

Body Width

Function Type

Joint Port size

Connecting type and

Initial State

Voltage

Electricity Connect Form

4V: Two position Five Way Solenoid valve

1:18mm

10:Two Position Single Coil

M5:M5X0.8

Blank:

Pipe Joint type

AC220V:220VAC

Blank:

Sta , ndard Connector

2:22mm

20:Two Position Double Coil

06:1/8"

B:

Namur Type

AC110V:110VAC

LD:

Brown Din Connector with Light Indicator

3V:Two Position Three Way Solenoid valve

3:27mm

30C:Three Position Double Coil Center Closed type

08:1/4"

NC:

Normall , y Closed type

DC24V:24VDC

LD1:

White Din Connector With Light Indicator

4:34mm

30E:Three Position Double coil Center Exhausting type

10:3/8"

NO:

Normall , y Open type

AC24V:24VAC

W:

Out-leadi , ng Wire

30P:Three Position Double coil Center Pressuer Type

15:1/2"

DC12V:12VDC




Model no(18mm)

4V110-M5

4V120-M5

4V , 130-M5

4V130E-M5

4V130P-M5

4V , 110-06

4V120-06

4V130C-06

4V1 , 30E-06

4V130P-06

Position And Way Numbers

Two Position- Five Way

Three Position-Five Way

Two Position- Five Way

Three Position-Five Way

Effective Sectional Area

10mm²(CV=0.56)

7mm²(CV=0.4)

12mm²(CV=0.67)

9mm²(CV=0.5)

, Port Size

Inlet,Outlet,Exhausting M5x0.8

Inlet,Outlet,Exhausting G1/8"



Model no(22mm)

4V210-06

4V220-06

4V , 230C-06

4V230E-06

4V230P-06

4 , V210-08

4V220-08

4V230C-08

4V , 230E-08

4V230P-08

Position And Way Numbers

Two Position-Five Way

Three Position-Five Way

Two Position-Five Way

Three Position-Five Way

Effective Sectional Area

14mm²(CV=0.78)

12mm²(CV=0.67) ,

16mm²(CV=0.89)

12mm²(CV=0.67)
,
Port Size

Inlet,Outlet,Exhausting G1/8"

Inlet,Outlet,Exhausting G1/4"




Model no(27mm)

4V310-08

4V320-08

4V , 330C-08

4V330E-08

4V330P-08

4 , V310-10

4V320-10

4V330C-10

4V , 330E-10

4V330P-10

Position And Way Numbers

Two Position-Five Way

Three Position-Five Way

Two Position-Five Way

Three Position-Five Way

Effective Sectional Area

25mm²(CV=1.4)

18mm²(CV=1.00)< , br>
30mm²(CV=1.68)

18mm²(CV=1.00)
< , br>Port Size

Inlet,Outlet,Exhausting G1/4"

Inlet,Outlet G3/8 Exhuasting Port G1/4




Model no(34mm)

4V410-15

4V420-15

4V , 430C-15

4V430E-15

4V430P-15

3 , V410-15

3V420-15

Position And Way Numbers

Two Position-Five Way

Three Position-Five Way

Two Position-Five Way

Effective Sectional Area

50mm²(CV=2.79)

30mm²(CV=1.68) ,

50mm²(CV=2.79)

Port Size

Inlet,Outlet,Exhausting G1/2"

Working Medium

Compressed 40 Micron Filtered Air

Motion Pattern

Inner Pilot

Working Pressure

0.15~0.9MPa

Max.Pressure Resistance

1.2MPa

Operating Temperature

5~50℃

Voltage Tolerance

±10%

Power consumption

AC:4.5VA DC:3W

Insulation&Protection Class

F Class IP65

Highest motion Frequency

5 cycle/Sec

Minimum Activate Time

0.05 Sec
