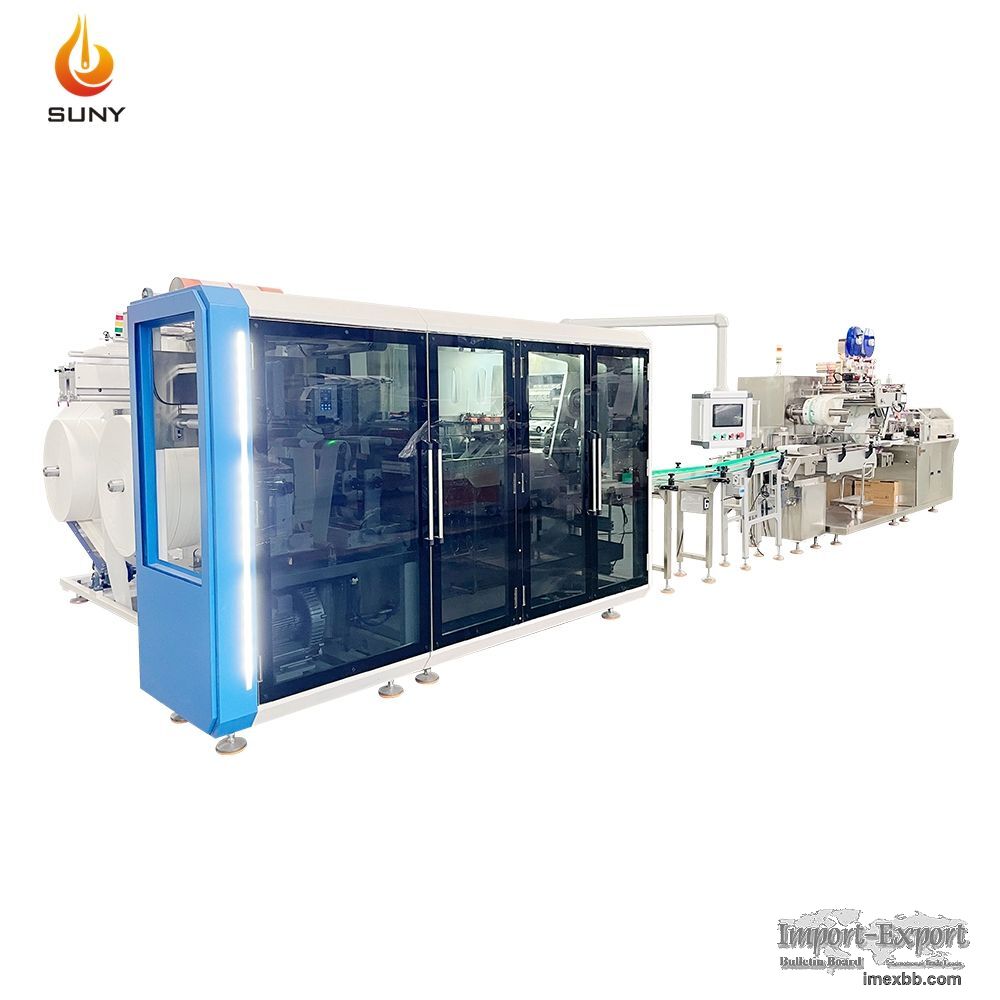

5-30 Wet Wipes Machine

Item Specification
------
Model SY535
Application Full Automatic Wet Wipes Production Machine
Capacity 10-80 bags/min; 800-1000 pcs/min
Power Supply AC380V, 3 Phase 5 Wire, 50HZ/60HZ
Power 18KW
Air Pressure 0.6-0.8MPa
Packing Size Range L120-330mm × W50-100mm × H10-100mm
Folding Method Interfold or Single Extraction
Wipe Unfolding Size L160-205mm × W150-210mm
Wipe Folded Size L80-105mm × W45-100mm
Finished Packing Size L150-230mm × W70-100mm × H20-80mm
Raw Materials Spunlace Nonwoven, Degradable Nonwoven Fabric, Airlaid Paper,
etc.
Packing Film Materials PET/PE, PET/AL/PE, PET/AL/CPP, BOPP/PE/AL/PE
Film Thickness 0.07mm-0.09mm
Fabric Specification 35-80GSM; Outer Diameter Max. 1100mm; Width 150-210mm

Fabric Inner Roller Diameter Ø76mm
Film Specification Two Rolls; Max Width 420mm; Diameter 350mm
Fabric Rollers 1 Axis Operation + 1 Axis Standby; Total 2 Axis Automatic
Splicing
Control System 10" LCD Touch Screen; Real-time Machine Speed Display;
Chinese & English Support (Customized)
Machine Weight Approx. 7000KG
Machine Dimension (L×W×H) 14200 × 1350 × 2300 mm

Minimum Order: 1 sets
