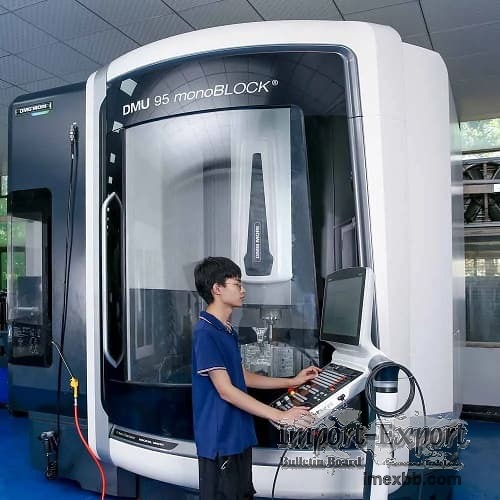

5-axis Machining Service

In our factory, there are 12 units of DMU 950 and Hermle 5-axis machining
equipment, which have held significant advantages in the field of precision
machining. Equipped with a ruby probe automatic compensator, they can monitor
the movement state of each axis of the CNC machine center and the tool position
in real-time during the machining process. When the machine tool has slight
deviations due to factors such as thermal deformation and mechanical wear, the
ruby automatic compensator can quickly capture these changes and feed back the
deviation data to the machine control system. The system then makes precise
adjustments to the tool path or coordinate axis position according to the
preset algorithm, ensuring that the machining always maintains a high-precision
level.
5-axis Equipment Parameter
Maximum stroke:  950*850*650 mm
Rotate speed:  20,000 rpm
Maximum workpiece size :  1200*1040*650mm
Machining Accuracy:  ±0.01/100mm
