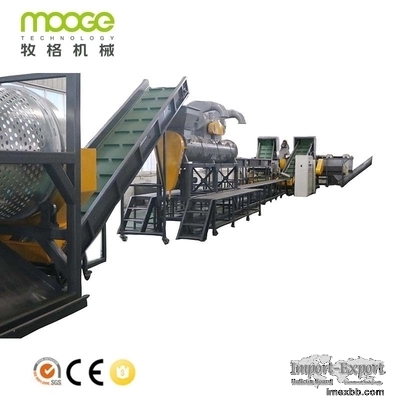

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line

Product Description
Factory sell plastic pet bottle recycling machine

Product Overview

This Waste plastic pet bottle recycling washing machine is designed and
manufactured by MOOGE TECH, which is widely used for waste plastic PET
material, such as water bottles, pet sheet, pet containers, etc.
The waste dirty material go through delabelling, crushing, washing, drying,
and collecting process will turn to be clean flakes for reuse.
This pet bottle washing machine can be displayed "L" or "U" shape according
to clients' workshop.
We can also customize the washing line components according to client's
material and product requirement.
Product Specification
Model
Capacity
Installed Power
Steam Use
Water Supply
Area Requied
MT-500
500 kg/hr
185 KW
Optional Choose
4-5 m3/hr
55*3.5*4.5 m
MT-1000
1000 kg/hr
315 KW
Optional Choose
5-6 m3/hr
62*5*4.5 m
MT-2000
2000 kg/hr
450 KW
Suggest Use
10-15 m3/hr
80*6*5 m
MT-3000
3000 kg/hr
600 KW
80000 Kcal
20-30 m3/hr
100*8*5.5 m
MT-4000
4000 kg/hr
800 KW
100000 Kcal
30-40 m3/hr
135*8*6.5 m
MT-5000
5000 kg/hr
1000 KW
120000 Kcal
40-50 m3/hr
135*8*6.5 m


500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 0

Machine Details
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 1

Bale Opener

Function: Opening the PET bottle bales and scatter the bottles

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 2

Trommel Machine

Function: Loosen the bottles, remove the sand or stone from bottles, feeding
out bottles constantly
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 3

Label Remover Machine

Function:Remove out the labels from the waste PET bottles

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 4

Pre-washer Machine (Optional Choice)

Function: With hot steam to pre-wash the bottles and remove out the dirty
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 5

Manual Sorting Belt (with high platform)

Function: Sorting out the remain labels manually, selecting out different
color and Non-PET bottles

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 6

Plastic Crusher Machine

Function: Crushing the bottles into small flakes, wet working with water
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 7

Floating Washing Tank

Function: Washing out the floating caps, rings and dirty from the bottle
flakes

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 8

Hot Washer Tank

Function: With hot water and chemical reagent to washing off the oil, glue
and dirty
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 9

Horizontal Dewatering Machine

Function: Remove the water from the bottle flakes

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 10

Pipe Drying System

Function: With hot air drying the bottle flakes
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 11

Zig-zag Air Classifier

Function: Remove residual fines/dust/labels

500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 12

Color Sorter (Optional Choice)

Function: Sorting out the different color of flakes
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 13
Related Product
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 14
We also supply plastic strap production line which is mainly used to make
different sizes of pet straps with virgin or recycled pet flakes.

PET packing strap is widely used to replace the steel strap for packing
carton, wooden case, etc. It is popular with its good tensile strength, non-
rustiness, and low use-cost.

With this plastic strap production line, we can achieve the purpose of
protecting our environment by reusing the waste plastic.

Packing & Delivery
• For the loose cargo we will packing by wooden box.

• For the full container loading we are packing the machine by film and some
on pallet accordingly.

• We can also ship the goods by air or by sea as buyer request.

• We will send pictures of cargo loading to our client to check and keep
recording.

• We can send cargo to client's warehouse to loading.
Company Profile
500-5000kg/H Plastic Recycling Washing Plant HRB Film Washing Line 15
We attend the Chinaplas Exhibition every year (In Shanghai and Guangzhou)
and take with our machine for test run at the booth. Besides, we also attend
the plastic exhibition in other countries such as Mexico, Turkey, Egypt,
Russia, Malaysia, etc. Please kindly contact with us in advance if you also
have time to attend, Sincerely welcome to our booth for visit and discuss
about detailed issues.
Our Service
• Pre-sale: we provide our client the detailed technical offer, the sales
contract etc.

• In-sales: we supply the machine layout, installation instruction, and
technician support for the clients.

• After sales: we arrange engineer to install the machine and train the
workers for our client.

• We have 24 hours service line to solve the after sales problem.

• We have free spare parts with the machine.

• We supply long term spare parts for every customer.

• We always update the new technology to every customer.



In order to match your requirement and provide you a proper offer, please
advise:

• What material do you want to recycling? PE film/PP bag? HDPE/PP bottle?
PET bottles? or other plastic?

• What capacity(kg/h) do you want? such as 500kg/hr or 1000kg/hr?

• What is the final size(mm) of flakes you want?

• Other special requirements about the pet bottle washing machine if you
have?
