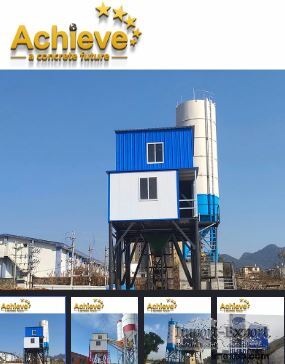

50t Mini Concrete Batching Plant Ready Mixed 60 CBM Per Hour MAO1000

1
Mixing system



1. Model:MAO1000

2. type:Double horizontal shaft

3. Charging Capacity:1600L

4. Discharge Capacity:1250L．

5. Unloading height :4m

6. Motor Power:18.5×2

7. Mixing Blade, liner plate:wear resistant material



SICOMA brand
2 electrical control system
The electrical control system consists of computer host, monitor, cabinet,
printer, communication cable, weighing instrument, bridge frame, etc.

1.Operation and management all in one, easy to operate.

2.The batching system is controlled by industrial integration.

3.The formula can be expressed in Numbers, easy for user identification and
dozens of recipes.

4.It has the function of error analysis and automatic detection.

5.In the absence of automatic control, the manual operating system can
still complete the control of the mixing station, such as ingredients,
stirring, discharging and so on.

6,The strong electric part of the system is self-contained, which is
completely separated from the weak current part, which improves the anti-
interference ability of the weak current and makes the strong electric part
greatly simplified and the maintenance is more convenient.

7,Equipped with four screen monitoring system.



1,printer:EPSON

2,monitor 19”
