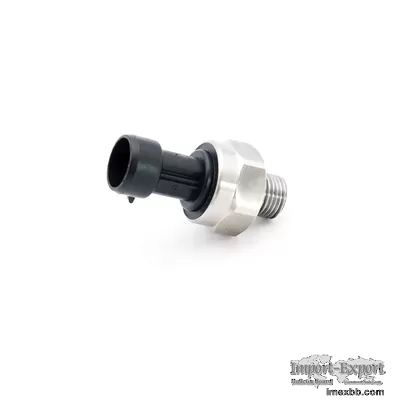

5V HVAC Pressure Sensor

Product Description
5V HVAC Pressure Sensor

5V Power Supply HVAC Pressure Sensor Pump Pressure Sensor Valve Pressure Sensor

Applicable media
Liquid, gas, steam
Pressure range
0-10bar, 0-20bar
Cell
Ceramic capacitive pressure sensor
Pressure measurement
Gauge pressure, sealing pressure, absolute pressure
Output
0.5-4.5VDC
Power supply
5V
Accuracy(linearity, hysteresis and repeatability)
1%F.S.
Work temperature
-20~70ºC
Ambient temp
-40~110ºC
Temperature drift(zero)
±0.15% F.S. (-20~70ºC)
Temperature drift(full range)
±0.15% F.S. (-20~70ºC)
Electrical connection
G1/4
Mechanical connection
Parkard
Housing material
SS304


5V HVAC Pressure Sensor 0
5V HVAC Pressure Sensor 2
5V HVAC Pressure Sensor
Enlarge Click to Enlarge
