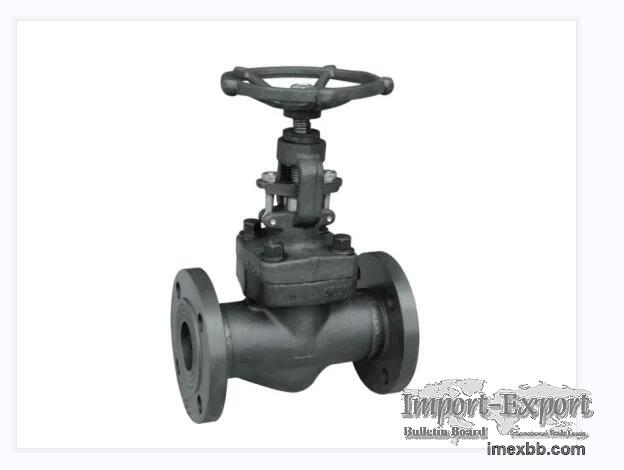

6 Globe Valve

6 globe valve is a fluid control valve, made of various stainless steel,
cast iron and other materials, mainly composed of valve body, valve seat,
valve disc, valve stem and other parts. There is an angle between the valve
seat and the valve disc, hence the name Angle globe valve. The globe valve 6
inch has a simple structure, is convenient to use, and can precisely control
the flow of fluid. Angle globe valve 6 is widely used in chemical,
petroleum, electric power, pharmaceutical and other industries for the
control and regulation of oil, water and gas media in pipelines.

6 Globe Valve Specifications
Nominal Diameter Standard Value Reference Value
DN NPS L D D1 D2 f b Z-Φd Do
H1 H2 W(kg)

(mm) (inch) PN1.0(MPa)
150 6 225 280 240 210 3 24 8-Φ23 240
605 650 85
PN1.6(MPa)
150 6 225 280 240 210 3 28 8-Φ23 320
605 650 85

If you are looking for a reliable valves factory, don't hesitate to contact
us!
