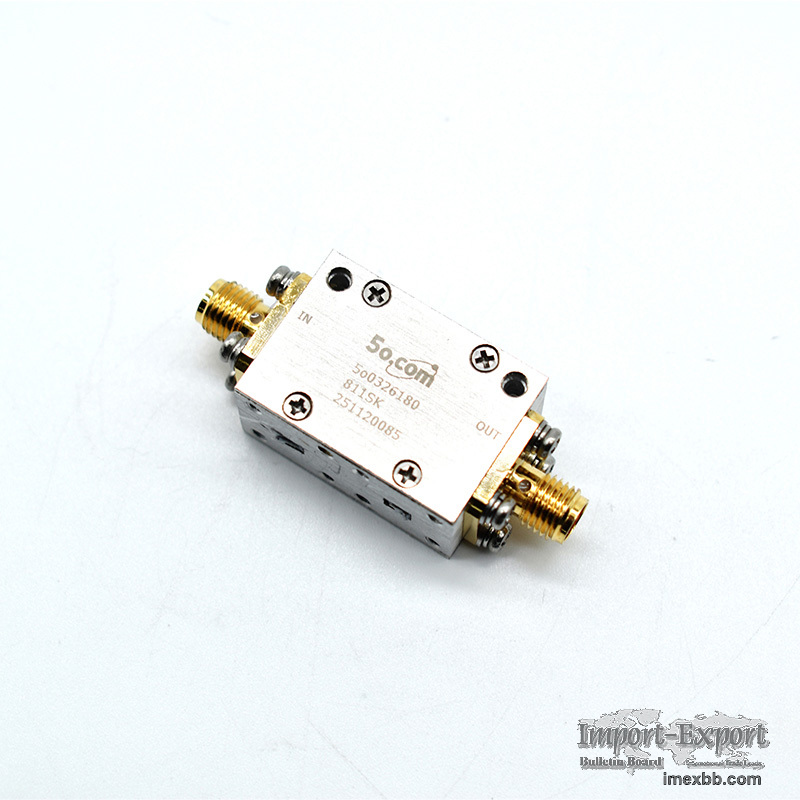

6 to 27.5GHz RF Dual Junction Coaxial Isolator

Model Number:5o0326180
Frequency Range:6.0~27.5GHz
Bandwidth:20%
Insertion Loss:0.6dB
Isolation:45dB
VSWR:1.2
Forwar , d Power:60W
Reverse Power:5W
Connector Type:SMA Female
Temperature:-55 ~+85℃
Dimension: 26*18*13.8mm

Application
RF power amplifier protection.
Digital,Satellite,Mobile Communication.
Medical,Communication,Security.
Military,Space and Commercial applications.

Engineered to operate cover 56MHz to 40GHz,with BW up to 13.5GHz.
Built to the rigorous standards required for commercial implementations,
military and space.
Boasts a performance trio of low insertion loss, high isolation, and robust
power handling.
Custom design is available upon request.

5o.com Inc. is a modern high-tech enterprise specializing in passive RF and
microwave components, integrating R&D, production, and sales. The company
focuses on technological innovation as its core and relies on technology
leadership.
The company's main products: Microwave RF isolators, circulators, coaxial
terminations, coaxial attenuators, power splitters/dividers, waveguide to
coaxial adapters, directional couplers, RF filters, and duplexers/multiplexers
and other microwave passive components.

Minimum Order: 1 pieces
