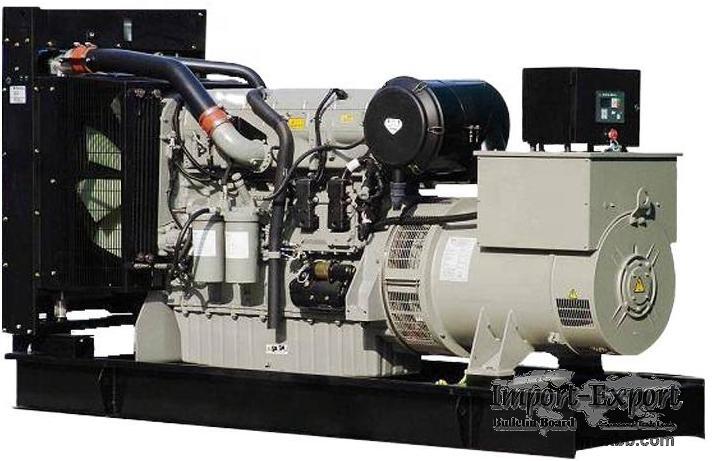

650KVA 520KW PERKINS DIESEL GENERATOR SET

Prime power:520KW/650KVA
Standby power: 572KW/715KVA
Engine model:2806A-E18TAG2
Rated voltage: 230V/400V
Cylinder: 6 inline
Cycel: 4 Stroke
Aspiration: Turbocharged
Broe*Stroke:145*183mm
Compressi , on rateio:18.2:1
Speed Governor: Mech
Cooling system; Forced water cooling cycle
Lube oil: 18L
Consumption:214g/kw.h
Startup mode: DC24
Control Panel: Smartgen/Deepsea
Alternator:Stamford,Marathon,< , br>Leroysomer.Evo Tech,EngGA etc
Excitation mode: Brushless self excitation
Voltage range:≥5％
Voltage fluctuation range:≤±5％
Frequency:50Hz
Rated speed:1500rpm
Phase: 3phase 4 wire
Power factor: 0.8
Insulation grade: H
Protection level:IP23
Warranty: 1 year
Size:3500*1650*2000mm
Weight:4400kgs

Minimum Order: 1 sets
