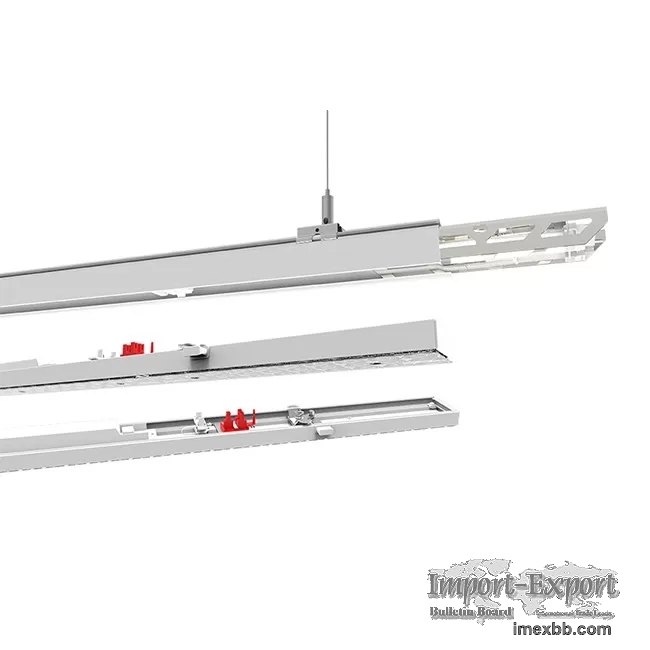

68w LED Suspended Linear Light for Shop retail supermarket

Shop retail supermarket sourcing functional max 68w led linear suspended linear
light

20W-25W-32W-38W-48W-54W-60W-68W with selector switch. With the built-in DIP
switch, the luminaire output can be adjusted at any time.
Fast and efficient installation, even in demanding industrial areas.
Through-wiring and the luminaire can be installed without tools.
The luminaire connection and the phase selection is easy to establish using a
plug-in connection integrated in the base support.
​Datasheet for LED module:

Item Model NO. Watt Lumen Efficacy Function EEC
L*W*H(mm)
1 RSL5S-60-S1 60W-50W-42W-32W 9,000lm 160LM/W On/off A++
1438*65*27
2 RSL5S-60-V1 60W-50W-42W-32W 9,000lm 160LM/W On/off A++
1438*65*27
3 RSL5S-68-PC 68W-60W-54W-48W-38W
32W-25W-20W by switch 10,500lm 160LM/W On/off A++ 1438*65*27
4 RSL5S-72-B3 72W-68W-64W-60W-56W-54W-52W-50W-48W-45W 10,500lm
160LM/W 0-10V A++ 1438*65*27
5 RSL5S-68-T4 Max 68W 10,500lm 160LM/W DALI A++
1438*65*27

Maximum Loading:

RSL5S-60-S1 RSL5S-60-V1 RSL5S-68-PC RSL5S-72-B3 RSL5S-
68-T4
B10 12 13 15 15 13
B16 19 21 24 25 21
C10 20 22 25 27 21
C16 32 35 40 42 35


​Datasheet for trunkings:

Item Model NO, Wires(mm²) Dimensions(mm) Weight(KG)
1
TKA5-05W-00
5 x2.5 mm²
1438x 65 x 65
1.59
2 TKA5-07W-00
7 x2.5 mm²
1438x 65 x 65
1.65
3 TKA5-11W-00
11 x2.5 mm²
1438x 65 x 65
1.95
4 TKA9-05W-00
5 x2.5 mm²
2876x 65 x 65
2.85
5 TKA9-07W-00
7 x2.5 mm²
2876x 65 x 65 2.98
6 TKA9-11W-00
11 x2.5 mm²
2876x 65 x 65 3.25




Accessories:
