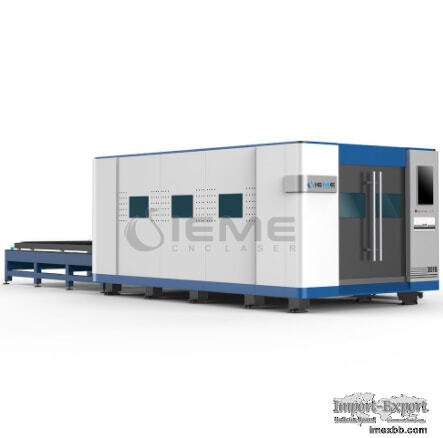

6KW Fiber Laser Cutting Machine

GS3015 is equipped with fiber laser device,2 exchangeable working table,power
from 1kw to 6kw and specially used for cutting 0.4-25mm steel plate.It is a
kind of metal sheet cutting machine which has passed the CE from TUV,FDA,ETL.

6KW Metal Laser Cutting Machine Features:
1.It adopts advanced branded optical fiber laser core technology,good optical
mode,stable performance.
2. High efficiency of photoelectric conversion,twice of domestic laser source.
3. Low heat of laser source,only needing 5P water cooling machine,saving
electricity.
4. The gantry flying light path design,light operation,saving about 40%
electricity than competitors.
5. Achieve a perfect cutting effect by only blowing compressed air
during processing,which can largely reduce costs of auxiliary gas such as
Oxygen.Nitrogen about thousand dollars,
6. Equipped with centralized lubrication system to make the machine run more
stable.
7.Axial positioning accuracy of workbench: ≤±0.03㎜/m
8.Repetitive positioning accuracy of workbench: ≤±0.03㎜/m

Technical Parameter of Laser Metal Cutting Machine with exchange table
Machine model GS3015 GS4020 GS6025
Laser power 1000W 2000W 3000W 4000W 6000W 8000W(Optional)
Dimensions 8150*2825*2125mm 10750*3350*2310mm
15000*4018*2755mm
Working area 3000mm*1500mm 4000mm*2000mm 6000mm*2500mm
Repeat positioning accuracy ±0.02mm
Maximum speed 180m/min
Max. acceleration 1.5G
Voltage and frequency 380V 50Hz/60HZ

Advantages of Laser Metal Cutting Machine
High-precision and high-quality cutting
Laser metal cutting machine can achieve high-precision cutting with smooth
cuts without further processing. Suitable for precision parts manufacturing.
High-speed cutting
Laser cutting is fast and can significantly improve production efficiency,
especially suitable for mass production and rapid prototyping.
Multi-material compatibility
Laser metal cutting machine is suitable for a variety of metal materials, such
as stainless steel, aluminum, copper, brass, etc., to meet different
manufacturing needs.
Strong flexibility
Sieme laser cutting machine can easily achieve complex graphics and shape
cutting, suitable for diversified production requirements.
