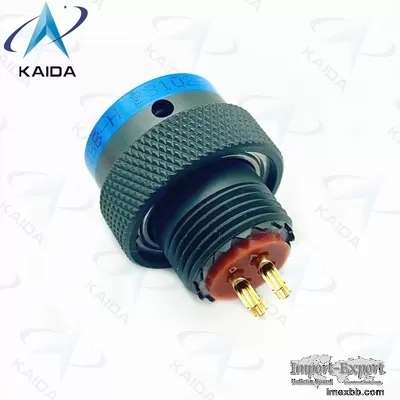

7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Serie

PRODUCT DESCRIPTION
Straight Plug with 7.5A Current Rating MIL-DTL-38999 Series Ⅱ. 4 Female
Pins.Olive Green Cadmium.

Product Description:
The MIL-DTL-38999 Series Ⅱ is a standard straight plug connector with 4
solder contacts. The Series Ⅱ connector is compliant with MS27473 and MIL-
DTL-38999 standards and is characterized by its gold contact plating, olive
green cadmium finish, and its solder contacts. It is designed for use in
military and aerospace applications. The Series Ⅱ connector offers a
reliable connection in high-temperature and high-vibration environments. It
is constructed with superior materials to ensure a long-lasting connection.
It features a ruggedized design that is resistant to shocks and impacts. The
Series Ⅱ connector is suitable for a variety of applications, including
power, signal, control, and data transmission.



7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Series
2 0

Features:
Product Name: MIL-DTL-38999 Series Ⅱ
Part Number: MS27467T10B04SB-H
Connector Type: Straight Plug
Insulator Material: Thermoplastic
Operating Temperature: -55 To 125 °C
Contact Termination: Solder
Contact Material: Copper Alloy
Shell Size: 10

Technical Parameters:
Property Value
Number of Contacts 4
Operating Temperature -55 To 125 °C
Shell Size 10
Finish Olive Green Cadmium
Contact Termination Solder
Insulator Material Thermoplastic
Contact Plating Gold
Current Rating 7.5 A
Gender Straight Plug
Series MIL-DTL-38999 Series Ⅱ


7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Series
2 1

7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Series
2 2
7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Series
2 3

7.5A Mil Dtl 38999 Series Ii 4 Female Pins Olive Green Cadmium D38999 Series
2 4







Applications:
MIL-DTL-38999 Series Ⅱ, manufactured by KAIDA, is a high performance
connector with the model number MS27467T10B04SB-H. It is designed for
commercial and military aerospace applications and is characterized by its
shell size 10 and gold contact plating. With a voltage rating of 500V, MIL-
DTL-38999 Series Ⅱ utilizes crimp contact termination and features superior
performance and robust design. This product from KAIDA is a reliable and
high quality MIL-DTL-38999 Series Ⅱ connector for diverse aerospace
applications.


Customization:
MIL-DTL-38999 Series Ⅱ with KAIDA MS27473T10B04SB-H Connectors
Brand Name: KAIDA
Model Number: MS27473T10B04SB-H
Place of Origin: China
Shell Size: 10
Gender: Straight Plug
Contact Termination: Crimp
Contact Plating: Gold
Operating Temperature: -55 To 125°C
Solder Contacts: MS27467T10B04SB-H

Support and Services:
MIL-DTL-38999 Series Ⅱ offers technical support and services to ensure that
customers have the support they need when purchasing and using this product.
Technical support includes but is not limited to:

Product compatibility and application assistance
Troubleshooting and installation support
Product configurations and customizations
Software and hardware maintenance and upgrades
Technical advice and guidance
Warranty and repair services

Packing and Shipping:
The packaging and shipping of MIL-DTL-38999 Series II is as follows:

The connectors shall be packed in a moisture proof material and shipped in
containers suitable for the type, weight, and quantity of the connectors.
Connector assemblies shall be packaged in moisture proof material and
shipped in containers suitable for the type, weight, and quantity of the
assemblies.
Containers shall be labeled with the contract number, part number, and
quantity.
Connector assemblies shall be shipped with a packing list.
For connectors and connector assemblies, the handling and packaging
materials shall be of the same quality as the connectors and assemblies.

FAQ:
Q1: What is MIL-DTL-38999 Series Ⅱ?
A1: MIL-DTL-38999 Series Ⅱ is a series of high-reliability, multi-pin
electrical connectors manufactured by KAIDA. They are designed to meet the
requirements of MIL-DTL-38999 Series Ⅱ specification.

Q2: What is the model number of this product?
A2: The model number is MS27473T10B04SB-H.

Q3: What is the place of origin of this product?
A3: This product is manufactured in China.

Q4: What are the features of MIL-DTL-38999 Series Ⅱ?
A4: MIL-DTL-38999 Series Ⅱ features a high-reliability design, high-density
contacts, and a wide range of configurations.

Q5: What are the applications of MIL-DTL-38999 Series Ⅱ?
A5: MIL-DTL-38999 Series Ⅱ is suitable for applications such as military
and aerospace, instrumentation, and communication.
