7 Inch Electric Encapsulator Machine For Pharmaceutical Enterprises

SS316 Softgel Capsule Machine / Automatic Capsule Machine For Pharmaceutical
Enterprises

Non animal Softgel Encapsulation Machine For 50000 - 70000 Capsules / H

Vegetable Gelatin Softgel Encapsulation Machine For 50000 - 70000 Capsules / H



Quick Detail



Product Name

Soft capsule Filling Machine

Power consumption

13 kw

Control Mode

PLC+Touch screen

Plunger Numbers

12

Dimension

880X2200 , X2000mm

Dosage deviation

< ±2%





7 Inch Electric Encapsulator Machine For Pharmaceutical Enterprises 0



Product Description

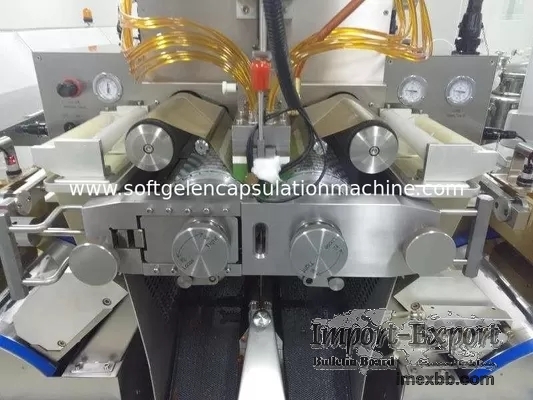

S407 Softgel Encapsulation Machine is developed based on Model S406 softgel
encapsulation machine. The die roll length is 20mm longer. It combines
advantages of foreign equipment and requirements of customers,considering the
needs and the biggest benefits of customers as start point.There are following
features besides S406’s. S407 adopts PLC operation, making operation more
convenient. The die roll’s rotation rate can be regulated within 0 to 7 rpm,
so users can choose the most proper rotation rate according to data of
different material and techniques. Drying cycle is controlled by PLC unified,
so users can regulate the cycle time conveniently. The tumbler dryer is
designed with a device to remind operators to prepare well when discharging.
S407 can realize the function of statistical statements and printing. The
machine drive system’s lubrication pump is droved by motor alone, which
greatly improves the lubrication performance when main equipment operating at a
very slow speed. At the same time, it can reduce machine vibration, prolong
machine overhaul time and save investment for users.


Specifically speaking, it has the following characteristics:

Dosage deviation:< ±2%
Material of oil roller: porous stainless steel
Parallel degree of main shaft of the die rolls:<0.02mm
Micro gelatin ribbon oil lubrication
Precision temperature control for injection wedge, spreader box and chilled
water.
The running parameters can be stored and recalled with a finger tip touch if
necessary.
Pneumatic wedge lift up.
Pneumatic left die shaft movement.
7 Inch Electric Encapsulator Machine For Pharmaceutical Enterprises 1
Application

It’s mainly for softgel making enterprises and pharmaceutical enterprises and
universities.

Specification


Model

S407

Die roll

Ф103X172mm

Die roll speed

0~7rpm

Plunger numbers

12

Overall dimension

880X2200X2000mm

weight
,
1200kg

Power consumption

13kw

Control mode

PLC+Touch Screen

Output rate

8#OV 50000-70000 pcs/hour for animal gelatin



8#OV 30000-50000 pcs/hour for animal free gelatin





Soft capsule/softgel making machine, paintball making machine, Tumble drying
machine, gelatin melting tank
