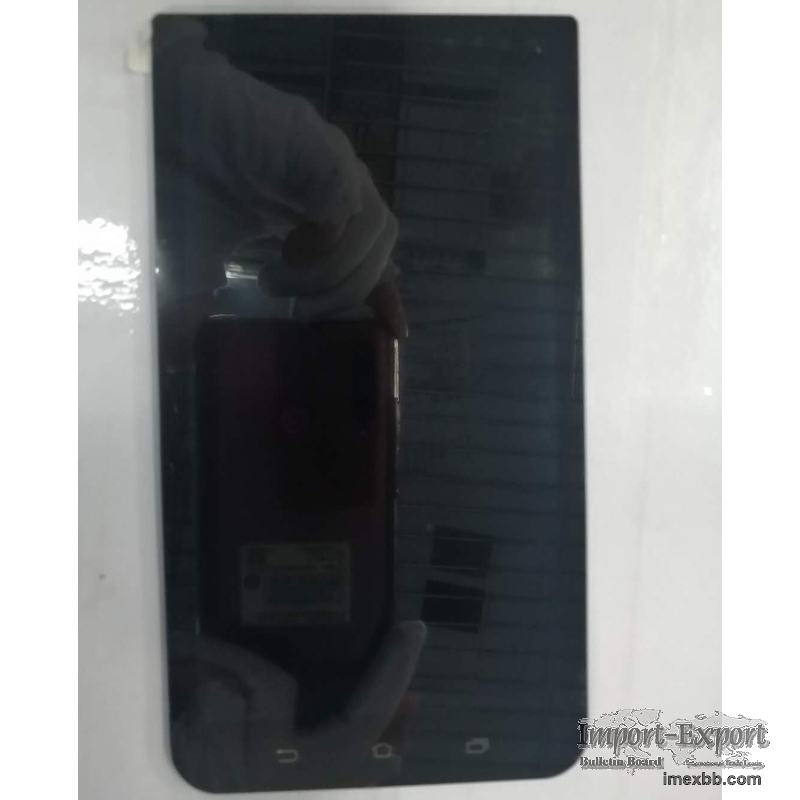

720x1280 Resolution 5.5 Inch MIPI Interface IPS Touch Screen

We make sensor and bond FPC in our own lcd screen factory and buy lcd screen
from professional lcd screen maker. We can do OCA and LOCA bonding in our
own facility.

Kingtech 5.5 inch lcd display has a high resolution for 720x1280.

This 5.5inch MIPI DSI interface ips lcd capacitive touchscreen, we can also
custom LCD screens according to the customer's requirements. The 5.5inch
lifetime can reach 30000 hours and the brightness is 390nits.

Features of 720x1280 Resolution 5.5 inch lcd MIPI Interface IPS Touch Screen

All/Free/Wide viewing angle

720x1280 resolution

IPS type

MIPI 2 lanes and MIPI 4 lanes

Support TFT capacitive touchscreen

Specification of 720x1280 Resolution 5.5 Inch MIPI Interface IPS Touch
Screen

Item  5.5inch 720x1280 IPS display
Model No PV05505TD39C-C
Resolution  720x1280
Outline Dimension  144.4(W)x79(H)x2.84(T)
Active Area(mm) 68.04(H)x120.96(V)
Interface  MIPI-4Lanes
Driver IC  ST7703
Viewing Angle All
LED life 30000h
Display Mode  Transmission / Normally Black
Operating Temperature  -20℃~70℃
Storage Temperature  -30℃~80℃
Brightness 390nits
Touch screen Capacitive touch screen

Application of 720x1280 Resolution 5.5 Inch MIPI Interface IPS Touch Screen

The 5.5inch 720x1280 IPS/free/all/full/wide LCD module can be used for 3D
printers, medical devices, handheld equipment, industrial control, smart
Home, POS machine, and a black box.
