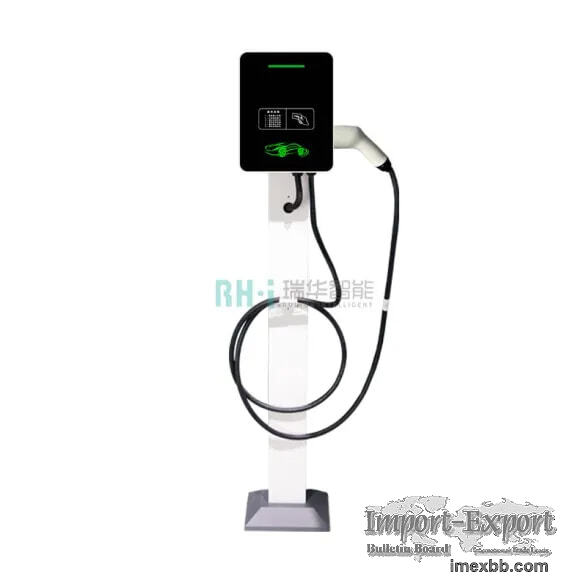

7kw Home Charger, Single Phase EV Charger

The 7kW Home Charger is a Level 2 electric vehicle (EV) charging station
designed for residential use. With a charging capacity of 7 kilowatts, it
offers faster charging than standard outlets, helping you keep your EV powered
up and ready to go.
Ideal for homeowners, this charger allows you to charge your electric vehicle
at home, avoiding the hassle of trips to gas stations. You can also schedule
charging times for more flexibility, ensuring your EV is always fully charged
when needed.

Compatible with most electric vehicles, the 7kW Home Charger provides an
efficient and cost-effective solution for residential EV owners. Its reliable
performance and easy installation make it a top choice for those looking to
enhance their home charging setup.

7kw Home Charger Specification
Model RHAC7K-X RHAC11K-X/RHAC21K-X
Applicaton Residental / Commercial
Voltage and Wiring Single Phase 230V Three Phase 400V
Frequency (Hz) 50/60Hz
Current Output Single Phase 32A Max Three Phase 32A Max
Charging Connector Type-2 Socket or Type-2 Tethered 5m
RCD 30mA AC & 6mA DC
Electrical Protecton Over current, Under voltage,Over voltage, Over
temperature,Surge protecton, Short circuit, Ground fault
Buttons 1 x Physical Button
Indicatons Green/blue/Red
Network Connectvity Ethernet, WLAN, Celluar
RFID ISO 14443 A/B
Display 4.3-inch LCD
Data Protocol OCPP1.6J, OCPP2.0.1
DLB Dynamic Load Balancing
Operaton Temp. -30 °C ~ 50 °C / -22 °F ~ 122 °F
Storage Temp. -40 °C ~ 70 °C / -40 °F ~ 158 °F
Working Humidity 5%~95% without condensaton
Mountng Type Wall Mount (default) / Floor post (optonal accessory)
Ingress Protecton IP65
Dimension 350*250*122 mm (H*W*D)
Weight 6.5 kg 7.5kg/9.5kg
Mobile App iOS/Android
Certficaton CE, IEC 61851-1, IEC 62196-2

7kW home charging stations more informations:
♦ Charging Time: The charging time for a 7kW home charging station depends on
the battery size of the electric vehicle being charged. As a general rule, a
7kW charging station can fully charge a typical electric car with a 40kWh
battery in around 6 hours.
♦ Installation: Installing a 7kW home charging station requires a dedicated
circuit and a compatible power supply. It is recommended to have a licensed
electrician install the charging station to ensure it is done safely and
correctly.
♦ Cost: The cost of a 7kW home charging station can vary depending on the
brand and model, but generally ranges from a few hundred dollars to over a
thousand dollars. In addition, installation costs may also apply.
♦ Compatibility: It is important to ensure that the 7kW home charging station
you purchase is compatible with your electric vehicle’s charging connector.
Most charging stations are compatible with the standard Level 2 charging
connector (J1772), but some electric vehicles may require a different connector
type.
♦ Features: Some 7kW home charging stations come with additional features such
as Wi-Fi connectivity,mobile app control, and scheduling functions, allowing
you to monitor and control your charging remotely.
A 7kW home charging station is a great investment for electric vehicle owners
who want the convenience and flexibility of charging their vehicle at home. It
offers a faster charging rate than a standard Level 1 charging cord and can
help ensure that your electric vehicle is always ready to go when you need it.
