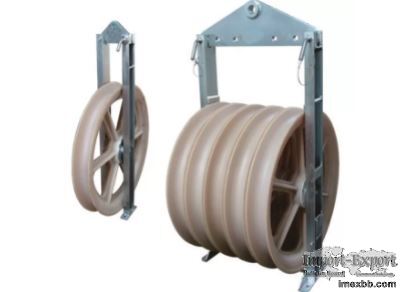

822mm Large Diameter Bundled Conductor Stringing Pulley Block

822mm Large Diameter Bundled Conductor Stringing Pulley Block With Nylon Wheels



This 822mm Large Diameter Stringing Block possesses the dimension (outside
diameter*root diameter*sheave width) of Φ822× Φ710× 110 (mm). Its maximum
suitable conductor is LGJ630, which means that the aluminum of our conducting
wire has the maximum cross section of 630 square millimeters.

The 10148 type product is designed with the assembled structure. It is really
convenient to separate the conductor from middle sheave, thus helping reduce
the weight during transportation. Dimension of the middle steel sheave is
φ520×φ400×120 mm. Furthermore, we can also provide the rubber coated
aluminum sheave, the rubber coated MC nylon sheave, as well as the reinforced
nylon sheave coated by polyurethane.



1. Maximum suitable conductor ACSR630.

2. Sheave dimension ( outside diameter× root diameter × sheave width)
Φ822×Φ710×110

3. Rubber lined MC nylon sheave for conductor can be customized.
