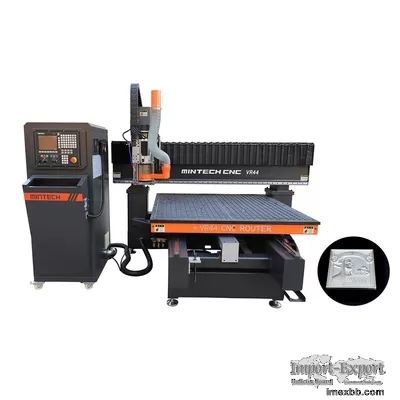

9KW Woodworking CNC Machine

PRODUCT DESCRIPTION
9KW Air Cooling ATC Woodworking Cnc Machine
Workbench:

(1) Phenolic panel workbench--Vacuum adsorption table

(2) Workbench carrying weight--500KG

Tool change system:Straight-line tool changing system--4pcs in one row

CNC System:WEIHONG professional CNC system--NK260

Driving motor(AC servo):

(1) X-axis driving motor: 1500W

(2) Y-axis driving motor: 1500w

(3) Z-axis driving motor: 1500w

Electric spindle(frequency conversion):

(1) Spindle: Air cooling

(2) Spindle rotating speed: 4000—24000RPM

(3) Spindle power: 9KW

(4) Spindle taper hole: ISO30

(5) Spindle Rotating speed level: G2.5

(6) Frequency converter: VFD

Guide: X,Y,Z-axis guide--Square guide(25mm)

Transmission: X,Y,Z-axis transmission--Ball screw





9KW Woodworking CNC Machine 09KW Woodworking CNC Machine 19KW Woodworking CNC
Machine 2









9KW Woodworking CNC Machine 39KW Woodworking CNC Machine 4

1. Model:V6
2. Working voltage:AC380V / 50HZ / 3PH
3. Working size:1220mm * 12200mm * 100mm
4. The height from beam to working table:200mm 5. Z axis travel:450mm
6. Max working speed:20m/min(Tools required for maximum cutting) 7. Maximum idle
speed:30m/min
8. Repeated positioning accuracy:+ / - 0.05mm
9. Driving mode: X,Y,Z-axis high precision ball screw drive



9KW Woodworking CNC Machine 59KW Woodworking CNC Machine 69KW Woodworking CNC
Machine 7





​

FAQ:

Q:I knew nothing about this machine, what kindof machine i should choose?
A:Just tell us what you want to do byusing CNC machine, then let us give you
perfectsolutions and suggestions.



Q:What technical services can you provide?
A:We will send video and English manual with the machine. And 24-hour professional
technicians online training and problem
solving. It provide detailed installation courses.



Q:If some problems happen to this machineduring warranty period, what should I do?
A:We will supply free parts during machine warranty periodif machine have some
problems. While we also supplyfree life long
after-sales service. So any doubts, just let usknow, we will give you solutions.
