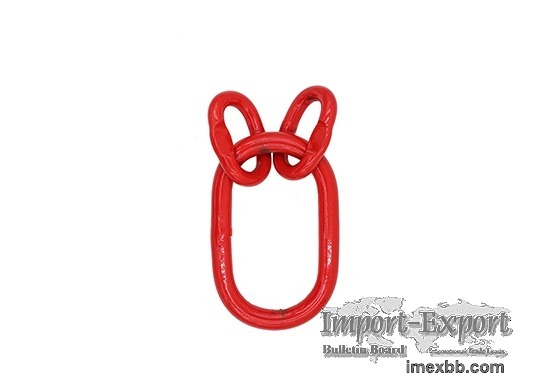

A342 Master Link

An A342 MasterLink is a type of lifting accessory commonly used in
industrial and commercial settings to connect chains, cables, or wire ropes.

The master link is made of high-strength alloy steel and is designed to
withstand heavy loads. It features a large central opening that allows
chains or cables to be easily attached to it, as well as smaller openings on
either side that allow for the attachment of hooks or other lifting
accessories.

The A342 Master Link is often used in applications such as rigging,
hoisting, and towing. It is important to use the appropriate size and weight
capacity of the master link for the job to ensure safe and efficient lifting
operations.

Specifications of A342 Master Link
Size WLL Weight Dimensions Tolerance
(T) (Kg) A B C
1/2" 2.2 0.37 12.7 63.5 127 ±5%
5/8" 3 0.69 16 76.2 152.4 ±5%
3/4" 4.7 0.94 19 70 139.7 ±5%
7/8" 6.5 1.59 22 88.9 177.8 ±5%
1" 11 2.2 25.4 88.9 177.8 ±5%
1 1/4" 15.9 4.34 32 111 222 ±5%
1 1/2" 21.7 7.36 38 133 266 ±5%
1 3/4" 28.4 11.4 44.5 152.4 304.8 ±5%
2" 44.3 16.8 50.8 177.8 355.6 ±5%
2 1/4" 54.2 24.5 57.2 203.2 406.4 ±5%
2 1/2" 66.8 30.7 63.5 203 406 ±5%
Production Process Drop Forging
Material Grade Superior Alloy Steel
Heat Treatment Quenching and Tempering
Safety Factor 4:01
Finish Powder Coated
Supply Certificate Mill Test Certificate According to EN 10204 3.1;
Under request, CCS/ABS/DNV third party
Inspection certificate can be supplied, but the cost would be extra
to buyer account.

If you want to know more details of manufacturing rigging, please visit our
website.

Minimum Order: 1 sets
