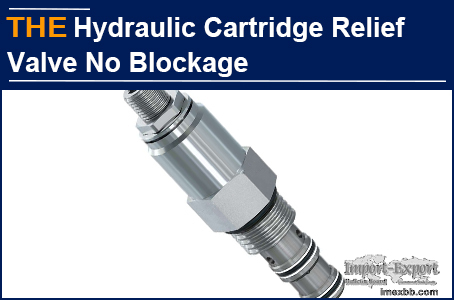

AAK Hydraulic Cartridge Relief Valve No Blockage

Ephraim comes from a hydraulic equipment manufacturing company in Chile. He has
been purchasing smoothly for 3 years. Unexpectedly, the hydraulic cartridge
relief valve purchased at the beginning of the year stumped him. 3 months ago,
they received a customer complaint that the hydraulic cartridge relief valve on
the logistics transmission system of the coal yard could not be opened or
closed properly, or the control was unstable. After checking, it was found that
the damping hole and the slender hole of the valve cage were blocked by
impurities in the hydraulic oil. 3 months after the hydraulic oil was replaced,
the old problem reoccurred. The original manufacturer of the hydraulic
cartridge relief valve said that the site was too dirty. The problem was not
avoidable. The only solution was to replace the hydraulic cartridge relief
valves regularly. The boss couldn't accept this so frequent after-sales service
and asked Ephraim to solve the problem from the root.

After browsing AAK website, Ephraim found that AAK had many cases of solving
customers' difficult problems, and sent an email to ask: how to improve the
hydraulic cartridge relief valve to reduce the blockage of the conveying
equipment in the coal yard? I didn't think he explained it clearly. After
communication, I learned that the damping hole of the valve and the slender
hole of the valve cage were easily blocked by impurities in the hydraulic oil.
According to the anatomical picture of the original hydraulic cartridge relief
valve provided by him, its damping hole and slender hole structure are a bit
strange. If optimized, the anti pollution ability can be improved. Ephraim was
half convinced when he learned about this solution. After 40 days, AAK sent 18
hydraulic cartridge relief valve samples.

Ephraim sent an email last week for an order of 200 hydraulic cartridge relief
valves. He said that AAK hydraulic cartridge relief valves have been used for 6
months, there was no blockage. Their boss wanted to replace all the equipment
with AAK relief valves at one time, completely saying goodbye to the strange
circle of after-sales service once every three months. AAK hydraulic cartridge
relief valve is unblocked. The key lies in the improved structure of the
original hydraulic cartridge relief valve from 3 points:

1. The valve seat of the hydraulic cartridge relief valve is a cylinder with
one end open and one end closed. The open end of the valve seat is equipped
with external threads. Two springs and spring covers are installed in the valve
seat in sequence. The first spring is a conical spring with the big end upward,
and the second spring is a cylindrical spring.

2. The upper end of the valve stem is fixedly connected to the spring cover,
the lower end of the valve stem is provided with an overflow valve spool, and
the lower end of the second spring is installed in the spring seat.

3. An oil make-up valve spool with an overflow valve port is arranged below the
spring seat. An oil port is arranged between the oil make-up valve spool and
the spring seat, the valve rod passes through the overflow valve port, and the
dynamic seal of the overflow valve spool is matched at the bottom of the
overflow valve port. The oil make-up valve spool and spring seat are of an
integrated structure. The sealing surface of the oil make-up valve spool is a
spherical sealing surface, and the sealing surface of the overflow valve spool
is a conical sealing surface.

The optimized AAK hydraulic cartridge relief valve eliminates the previous
damping holes and slender holes, reducing the number of seals. The sealing
surface adopts the structure of combination of conical surface and spherical
surface, which is better for sealing and assembly.

AAK hydraulic cartridge relief valve, no blockage, you can also have a small
try!
