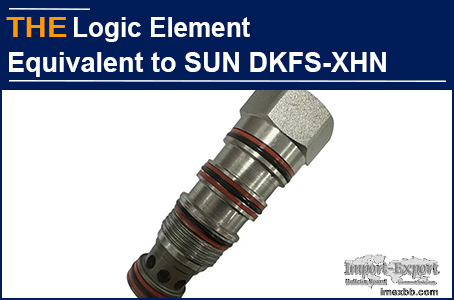

AAK Hydraulic Logic Element benchmarking SUN DKFS-XHN

This week, we launched a hydraulic cartridge logic element benchmark SUN DKFS-
XHN. This hydraulic logic element is a normally closed, balanced poppet,
switching element. Pilot pressure at port 3 shifts the valve to the open
position.

Most of hydraulic cartridge valve manufacturers in Ningbo China do not have
this model. One of our customers in Brazil checked with 5 hydraulic valve
manufacturers in 2 months, but none of them have this logic element. He was
very happily to finally find it at AAK. But for it is his first time to do
business with AAK, he ordered only 5pcs first last June as the trial order.
Today, we received his regular order of 1,000 pcs for this SUN model DKFS-XHN
Normally closed, balanced poppet, pilot-to-open logic element. It is said that
AAK E-DKFS-XHN has passed the testing in the past year, its quality, function
and performance is equivalent to SUN DKFS-XHN.

AAK hydraulic logic element 2 major advantages:
1. Manufacturing quality, function and performance benchmark SUN.
2. But the price is less than 70% of SUN.

Technical parameters of AAK E-DKFS-XHN Hydraulic logic element:
Max.Working Pressure: 350 bar (5000 psi)
Flow Rating: 30 gpm/min (120L/min)
Min. Pilot Pressure Required to Shift Valve: 20 psi (300 bar)
Max. Valve Leakage at 110 SUS (24 cSt): 10 drops/min @5000 psi (0,7 cc/min @350
bar)
Pilot Volume Displacement: 0.02 in³ (0,33 cc)
Cavity: T-22A

AAK hydraulic logic element, benchmarking SUN DKFS-XHN, you can also give it
a try.
