AC Motor 800m/Min Auto Wire Take Up Machine Fiber Optic Cable Machine

Fiber Loose Tube Auto Cut And Change Bobbin Take Up Traverse Machine
1. Structure for Fiber Loose Tube Auto Cut And Change Bobbin Take Up Traverse
Machine:
The line unit is composed of 3kw dongguan universal ac inverter motor,
synchronous belt, synchronous belt wheel and brake.The motor is driven by the
synchronous belt, which leads to the rotation of the large wheel connected with
the winding shaft, which will drive the winding circle to complete the take up
process.
The bobbin lifting unit is composed of lifting rack and clamping top.Bobbin
push into hoisting frame,then artificial start bobbin control button, after
cylinder ascending to a specified height automatic stop cylinder, then the
clamping cylinder drives the vice top out automatically, the shaft and spool
closely together.
The traverse part consists of 750w Panasonic ac servo motor, a set of
synchronous belt wheel, screw rod, linear guide rail and reversing
system.Driven by motor through a set of synchronous belt wheel ball screw
rotation.By adjusting the motor speed, can meet the needs of different pitch
requirement.The reversing system adopts adjustable mode, which can be adjusted
according to the width of the bobbin. It can also be fine-tuned to ensure that
the traverse is changed at a reasonable position.
The transverse motion mechanism is installed on the beam above the take up
bobbin, and consists of 370w three-phase asynchronous motor, reducer,
synchronous belt wheel, synchronous belt and mobile car.Mobile car by motor
through a gear reducer in the disk drive synchronous pulley wheel rotation,
through the synchronous belt drive the car on the beam movement, to the
required position automatically stop, simple structure, reliable operation.
2. Specification for Fiber Loose Tube Auto Cut And Change Bobbin Take Up
Traverse Machine:
The electronic control system adopts PLC logic control and touch screen
operation.Separate electrical control cabinet.PLC adopts Siemens S7-300 series
products;Ac inverter adopts DANFOSS products;Ac frequency conversion motor USE
dongguan universal motor products;The ac servo system USE Panasonic
products;The air switch, contactor and other low-pressure electrical appliances
adopt Siemens products;Intermediate relays adopt Schneider products.Power
supply according to the three-phase five-wire distribution line;All the cover
and control cabinets of the equipment have reliable grounding.Low voltage
electric appliances adopt, electrical installation meets IEC international
standard.

3. Main paramters for Fiber Loose Tube Auto Cut And Change Bobbin Take Up
Traverse Machine:
Bobbin size

PN630mm,PN800mm

Structure speed

800m/min

Shaft hole size

φ56mmand φ80mm

Take up motor

4kw Ac motor

Traverse motor

0.75kw panasonic ac servo motor

Machine size

3000mm×1800mm×2000mm(L×W×H)

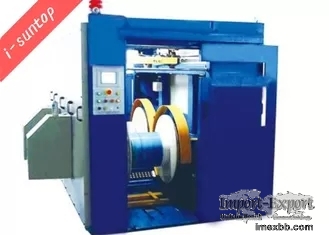

AC Motor 800m/Min Auto Wire Take Up Machine Fiber Optic Cable Machine 0
AC Motor 800m/Min Auto Wire Take Up Machine Fiber Optic Cable Machine
