ACREL ACR10R-DXXTEX BIDIRECTIONAL THREE-PHASE REFLUX MONITORING ENERGY METE

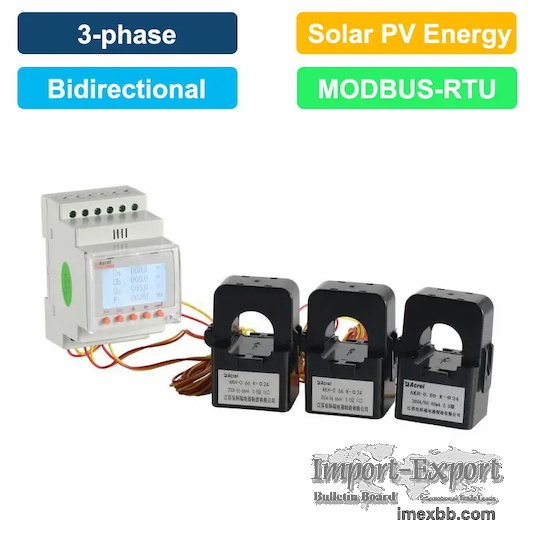

ACR10R-DxxTEx bidirectional three-phase re-flux monitoring energy meter is
equipped with external Rogowski coils and split-type transformers, which are
suitable for energy-saving renovation projects in high-energy-consuming
industries such as smelting, steel, electric welding, and semiconductors, and
are also suitable for power monitoring and power demand-side management of
distributed photovoltaic grid-connected cabinets.

Specification of ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring
Energy Meter
Function/Model ACR10RH-DxxT(R)E4 ACR10RH-DxxT(R)E3
Display mode LCD（Field LCD） ■
Measuring parameter Current/voltage/frequency/power facto ■
Active power/reactive power/apparent power ■
Four-quadrant electric energy measurement ■
Maximum demand □
Multiple-rate electric energy measurement □
Power quality monitoring Total harmonic content ■
subharmonic（2-31 times） ■
Data logging Incident record □
Display mode Alarm □
Built-in clock □
Communication RS485 interface ■
Optional function (choose one) J（2DO） A1+（B1 or C1）
K（4DI） (4DI+2DO or 4DI+EP)*
pulse（2channels）

Note:

1. “■”is standard allocation function,“□”is matching function, Above
instrument standard 1 channel RS485 communication；

2. Terminal connection mode corresponding to A1/B1/C1 and so on in selection
function；

3. Pulse output and relay output can not be selected at the same time;

4. When you select an event logging feature, you must configure the DI or DO

Features of ACR10R-DxxTEx Bidirectional Three-phase Reflux Monitoring Energy
Meter
01
It provides asynchronous half-duplex RS485 communication interface and adopts
MODBUS-RTU protocol. All kinds of data information can be transmitted on the
communication line;

02
It adopts LCD display interface, and realizes parameter setting and control
through panel buttons, which is very suitable for real-time power monitoring
system;

03
It has the characteristics of no need to dismantle the busbar once, simple and
convenient wiring, safe construction, saving renovation costs and improving
efficiency for users.

We can offer sorts of 3 phase wireless energy monitor for sale, and the price
of smart meter three phase is reasonable, if you have needs to buy a high
quality industrial 3 phase energy meter, please contact us.

There are many smart energy meter manufacturers in China, but we are one of the
best choices for you.

Minimum Order: 1 pieces
