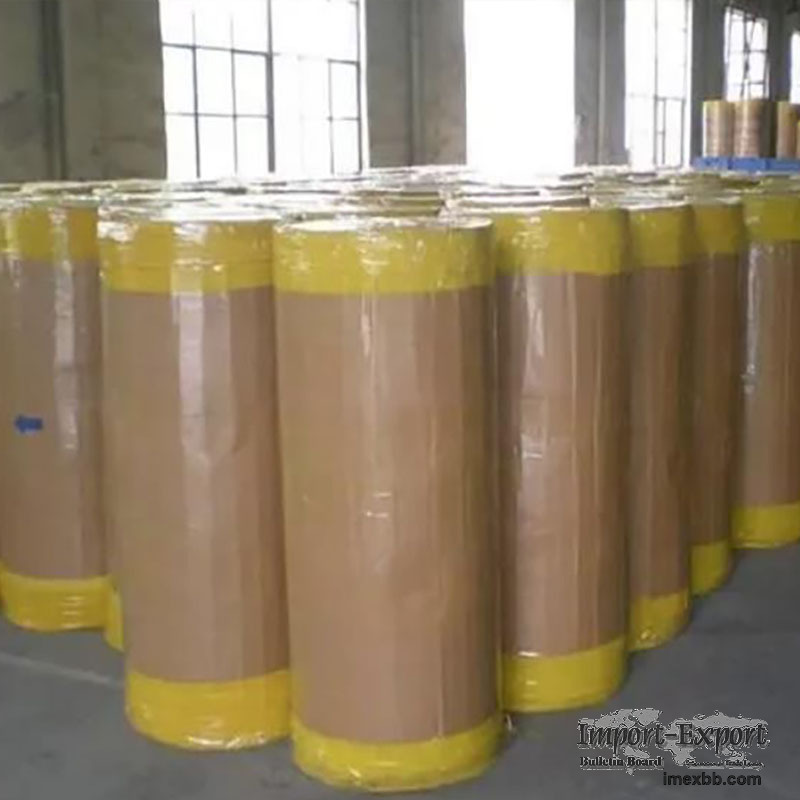

Acrylic adhesive double sided tapes

Double sided tape has excellent resistance to yellowing, is non-toxic,
odorless, and also has strong adhesion. It has good adhesive strength and is
used for general bonding and fixation.

Features:

Good initial adhesion performance and high bonding strength
Good high-temperature and aging resistance performance
Widely applicable, able to stick various substrates

Application:

Excellent high-temperature and aging resistance. Suitable for foaming materials
such as PE, PP, PVC, EPDM, etc. Suitable for stamping and pasting nameplates
and membrane switches. Suitable for bonding materials such as paper, cardboard,
cloth, fibers, etc.

Material composition:

100g/m 2 * 105u white double-sided release paper
20u acrylic ester polymer adhesive
14g/m 2 * 30u ordinary cotton paper
20u acrylic ester polymer adhesive

Standard size:
Width：1020mm/1240mm
Length：100m

Test characteristics:
Test project Test criteria Test standards/conditions
Thickness (u) 70 ± 5 GB/T7125-2014
Color Semitransparent or amber ——
Initial adhesion of rolling ball (#) ≥ 10 GB/T4852-2002
Peeling (N/24mm) ≥ 10 GB/T2792-2014
Stickiness (h/24 * 24mm) ≥ 1 GB/T4851-2014
Temperature resistance range ℃ -20~60 ——
Short time high temperature resistance ℃ 100 ——

Storage and Use:
It is recommended to store the product at 0 ℃ -35 ℃, with a relative humidity
of less than 50%, on a pallet 10cm above the ground and walls, and in a dark
place to avoid exposure to sunlight. The shelf life of the above conditions can
be up to 12 months from the production date.

Before use, place the tape and the required fixing materials in an environment
of 16 ℃ -38 ℃ and a relative humidity of 50% -60%. Any material surface that
needs to be fixed should be flat, dry, dust-free, free of surface pollutants
such as oil stains and release agents.

Minimum Order: 1000 square metres
