Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor

Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor



Active Cooling 16U Outdoor 19" Cabinet For Base Station / Outdoor Rack With
Air-Conditioner



1. Applications


Outdoor telecom equipment cabinet is mainly used in Data communications, IT
& Network system, Data management, Defence / Government, Power supply and
management,Telecommunications, Fiber & cable management, Power, Oil & Gas
and Energy such as solar energy, wind energy, energy saving etc. Suitable
for different conditions: gale, rain,snow,hail, frost, smog and solar
radiate etc.



2. Outdoor telecom cabinet introduction



The outdoor communication cabinet can hold 16U 19” equipment. The cabinet
is made of single layer of galvanized steel with heat insulation, with air
conditioner cooling on the door. Suitable for outdoor environment,
waterproof, dustproof, sunproof and fireproof.



3. Technical data of outdoor cabinet





No. Description Specification
Specification of cabinet
1 Model ET7080100-EQ2
2 External Size W700×D800×H1000mm
3 Color Outdoor anticorrosion powder coating RAL7035
4 19 inch rack 16U
5 Door Only front door, door open angle can be reach 110°,
6 Lock Outdoor special anti-theft three point locking(bottom, top
and middle), support padlock
7 Material Galvanized steel, single wall with heat insulation
8 Cabinet Installation Ground installation
9 Cable Entry Located on the bottom
10 Lifting 4 ears on the cabinet base
11 Earthing Grounding copper bar
12 Working Temperature -40°C～+75°C
13 Protection Level IP55
14 Relative Humidity 5% ~ 100%
15 Atmospheric Pressure 62kpa ~ 101kpa (similar to 0m ~ 5000m
altitude)
16 Solar Radiation Intensity 1120 ×(1±5%)W/m2
Other accessories
1 Air conditioner AC220V 50Hz 500W
2 Power distribution unit
Grade B Lightning Proof

AC Input: 63A/2P ×1;

AC Output: 16A/1P×4;

DC Output: 16A/1P×4.

Height: 4U

Can custom made based on user’s requirement.





4. Feature


(1) Maintin method: front door.
(2) Cooling by air conditioner
(3) The perfect earthing system protect it from thunder.
(4) Compact, easily move and carry.
(5) Embedded structure design, effectively ensure the door is prized.
(6) Vandal proof design with 3 pointing locking system.
(7) Cabinet meet the requirement of IP55 level of protection.
(8) Waterproof, fireproof, shockproof, anti-corrosion, anti sand and anti
ultraviolet, ensure cabinet can work longer in a harsh outdoor environment.
(9) Using powder coating ensure the anti-rust.

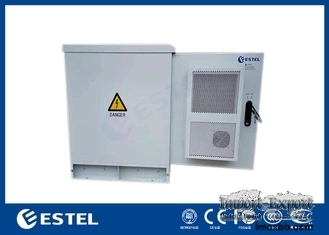

5. Cabinet display



Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor 0

Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor 1





6. Packing


Generally our products are pakced with plywood case to protection the
cabinet very well, inner will use the foam for anti-scratch.



Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor 2



7. Why choose us?

(1) 15 years manufacturer selling
(2) Wholesale/ Customize sample/OEM ODM are available
(3) Competitive price
(4) High product quality ,Strict quality control
(5) Intime Delivery: 30-35 working days after receipt of the deposit
(6) Best service !



8. Our factory and product



Active Cooling 16U 19 Inch Rack Cabinet For Base Station / Outdoor 3
