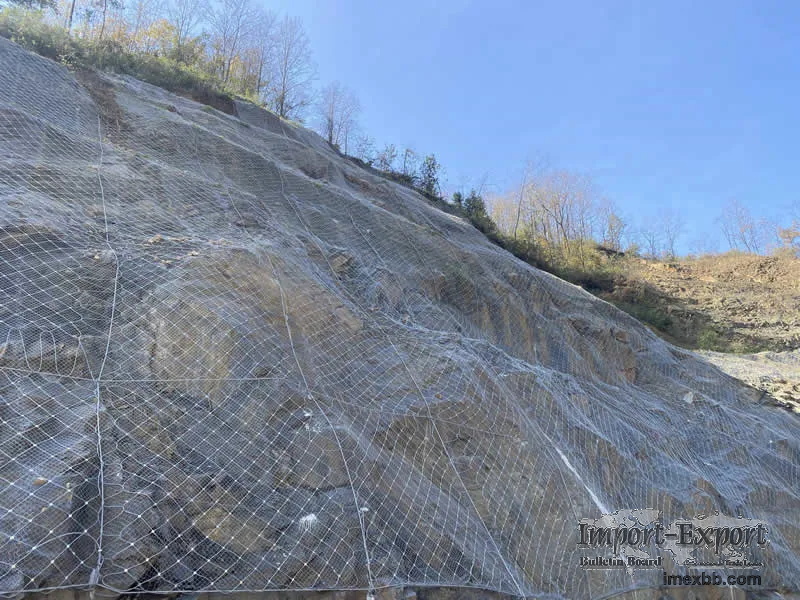

Active Slope Protection Mesh

Active slope protection mesh restrains loose rock on cut slopes, tunnel portals
and mountain roads, as part of full rockfall prevention systems with hexagonal
wire mesh, steel rope nets, support ropes and anchor fittings. Available
materials: hot-dipped galvanized, Galfan and PVC coated wire. Standard
hexagonal wire diameters: 2.7mm and 3.0mm with 60×80mm and 80×100mm openings.
7×19 galvanized steel rope net with diameters from 7.0mm to 8.0mm, tensile
strength 1770MPa. Mesh rolls come in 25m or 30m length and 0.8–3.0m width,
matched with 12mm or 16mm support ropes and full installation hardware. Widely
applied to traffic roads, mines and hydropower slopes. All specifications
adjustable per construction drawings.
Active slope protection mesh fixes loose rock on cut slopes, mountain road
sides and tunnel portals to stop rockfall hazards. The full system consists of
double-twist hexagonal wire mesh, steel rope nets, support cables, ground
anchors, rope clips and sewing ropes. General slope stabilization adopts 2.7mm
or 3.0mm hexagonal mesh; steep slopes with massive loose rocks add 7×19 steel
rope reinforcement nets. All products are delivered in rolls for on-site
laying. Final mesh size, cable diameter and anchor spacing must follow official
slope construction drawings.
