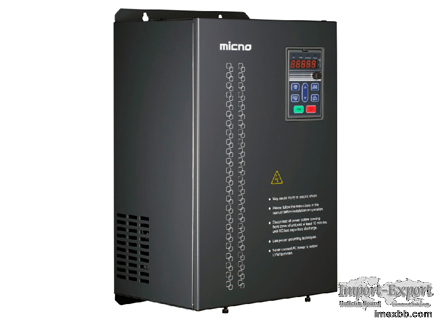

AE300 Series Economic Type Open Loop Vector Control Inverter

AE300 Series Economic Type Open Loop Vector Control Inverter is a kind of mini
general vector inverters, 3 phase ac motor driver adopt international advanced
vector control algorithm and possess excellent functions;

Based on its advanced design, it is well-known for its good quality, smaller
and space-saving with competitive price.

Features
Features of AE300 Series 3 Phase Vector Control Inverter

Excellent control performance

Mini design, smaller installation space

Rich product configuration and interface

Easy to use and easy to repair

Integrate multiple product features to meet diverse application needs

Applications of AE300 Series 3 Phase Vector Control Inverter:

Air compressor, Oil, Warming and Water Supply, Plastics machine, Mine, Fans and
Water pumps.

Technical Specifications of AE300 Series Economic Type Open Loop Vector
Inverter

Item Technical Index Specification
Input Input voltage 3AC 380V±15%
Input frequency 47~63Hz
Output Output voltage 0~rated input voltage
Output frequency V/f control: 0~3000Hz
Sensorless vector control: 0~300Hz
Control Features Control mode V/f control
Sensorless vector control
Torque control
Operation command mode Keypad control
Terminal control
Serial communication control
Frequency setting mode Digital setting, analog setting, pulse
frequency setting, serial communication setting, multi-step speed setting &
simple PLC, PID setting, etc. These frequency settings can be combined &
switched in various modes.
Overload capacity G model: 150% 60s, 180% 10s, 200% 3s
P model: 120% 60s, 150% 10s, 180% 3s
Starting torque 0.5Hz/150% (SVC); 1Hz/150% (V/f)
Speed adjustment range 1:100 (SVC), 1:50 (V/f)
Speed control precision ±0.5% (SVC)
Carrier frequency 1.0--16.0kHz, automatically adjusted according
to temperature and load characteristics
Frequency accuracy Digital setting: 0.01Hz
Analog setting: maximum frequency * 0.05%
Torque boost Automatically torque boost; manually torque boost:
0.1%~30.0%
V/f curve Three types: linear, multiple point and square type
(1.2 power, 1.4 power, 1.6 power, 1.8 power, square)
Acceleration/deceleration mode Straight line/S curve; four kinds of
acceleration/deceleration time, range: 0.1s~3600.0s
DC braking DC braking when starting and stopping
DC braking frequency: 0.0Hz~maximum frequency, braking time: 0.0s~100.0s
Jog operation Jog operation frequency: 0.0Hz~maximum frequency
Jog acceleration/deceleration time: 0.1s~3600.0s
Simple PLC & multi-step speed operation It can realize a maximum of 16
segments speed running via the built-in PLC or control terminal.
Built-in PID Built-in PID control to easily realize the close loop
control of the process parameters (such as pressure, temperature, flow, etc.)
Automatic voltage regulation Keep output voltage constant
automatically when input voltage fluctuating
Control Function Common DC bus Common DC bus for several inverters,
energy balanced automatically
Torque control Torque control without PG
Torque limit “Rooter” characteristics, limit the torque
automatically and prevent frequent over-current tripping during the running
process
Wobble frequency control Multiple triangular-wave frequency
control, special for textile
Timing/length/
counting control Timing/length/counting control function
Over-voltage & over-current stall control Limit current & voltage
automatically during the running process, prevent frequent
over-current & over-voltage tripping
Fault protection function Up to 30 fault protection including
over-current, over-voltage, under-voltage, overheating, default phase,
overload, shortcut, etc., can record the detailed running status during failure
& has fault automatic reset function
Input/output terminals Input terminals Programmable DI: 7 on-off inputs, 1
high-speed pulse input
2 programmable AI: AI1: 0~10V or 0/4~20mA; A12: 0~10V or 0/4~20mA
Output terminals 1 programmable open collector output: 1 analog
output
(open collector output or high-speed pulse output)
2 relay output
2 analog output: 0/4~20mA or 0~10V
Communication terminals Offer RS485 communication interface, support
MODBUS-RTU communication protocol
Human machine interface LED display Display frequency setting, output
frequency, output voltage, output current, etc.
Multifunction key QUICK/JOG key, can be used as multifunction key
Environment Ambient temperature -10℃~40℃, derated 4% when the
temperature rise by every 1℃ (40℃~50℃).
Humidity 90%RH or less (non-condensing)
Altitude ≤1000M: output rated power, >1000M: output derated
Storage temperature -20℃~60℃
Selection table
Inverter Model Motor Rated Output
Current (A)
KW HP
3AC 380V/400V/415V -15%~15%
AE300-0R7G/1R5P-T4 0.75/1.5 1/2 2.1/3.8
AE300-1R5G/2R2P-T4 1.5/2.2 2/3 3.8/6.0
AE300-2R2G/004P-T4 2.2/4.0 3/5 6.0/9.0
AE300-004G/5R5P-T4 4.0/5.5 5/7.5 9/13
AE300-5R5G/7R5P-T4 5.5/7.5 7.5/11 13/17
AE300-7R5G/011P-T4 7.5/11 11/15 17/25
AE300-011G/015P-T4 11/15 15/20 25/32
AE300-015G/018P-T4 15/18.5 20/25 32/37
AE300-018G/022P-T4 18.5/22 25/30 37/45
AE300-022G/030P-T4 22/30 30/40 45/60
AE300-030G/037P-T4 30/37 40/50 60/75
AE300-037G/045P-T4 37/45 50/60 75/90
AE300-045G/055P-T4 45/55 60/75 90/110
AE300-055G/075P-T4 55/75 75/100 110/150
AE300-075G/090P-T4 75/90 100/125 150/176
AE300-090G/110P-T4 90/110 125/150 176/210
AE300-110G/132P-T4 110/132 150/175 210/253
AE300-132G/160P-T4 132/160 175/210 253/304
AE300-800G-T4 800 1070 1400
AE300-900G-T4 900 1200 1580
AE300-1000G-T4 1000 1330 1750
AE300-1200G-T4 1200 1600 2100
AE300-1400G-T4 1400 2120 2350
