Aerial Drone ESC

Technology for Better Performance
Newly Designed Shape
Intelligent Operation
Special Core Program
Open Cooling Fin

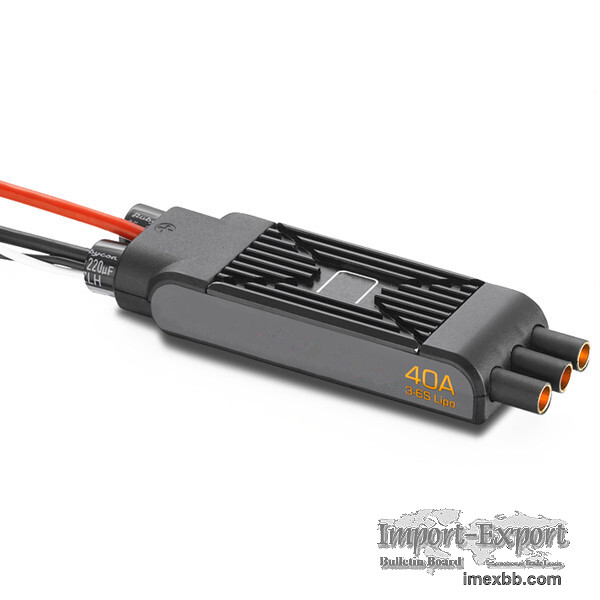

Aerial drone Brushless ESC 40A/ 50A

Aerial Drone Brushless ESC 40A Aerial Drone Brushless ESC 50A
Current 40A Current 40A
Input 3-6S Input 3-6S
Applications Wheelbase>550mm, aerial drone Applications Wheelbase>
650mm, aerial drone

Newly Designed Shape
A brand new structural design that is enclosed within an exquisite solid
plastic case that provides the all-round security and protection for the high
speed esc. The newly designed ESC can be easily placed into a carbon-fiber tube
with the I. D. of 23mm.

Auto Timing Adjustment & Preset Parameters for Highly
Intelligent Operation
Auto timing adjustment and preset parameters applicable to most applications
extremely simplify operation and optimize user experience.

Special Core Program for Rapid Throttle Response
The multi-rotor has made the demand over ESC response become even harsher than
usual.

Our newly special core program for rapid throttle response rate means a more
stable hover and swift movement during flight. With the ESC’s new rapid
response rate, the ESC can handle difficult and new challenges at ease.

Driving Efficiency Optimization(DEO)
Technology for Better Performance
Driving Efficiency Optimization (DEO) Technology is adopted for a higher
driving efficiency.

Open Cooling Fin
A high-performance aluminum folded fin heat sink is combined with the specially
designed heat-conductive slotted structure that brings excellent heat-
dissipating effect. This is an Extremely Simplified Operational Procedure.


Aerial Drone Brushless ESC 40A Aerial Drone Brushless ESC 50A
Specifications
Cont./ Peak/ Current 40A/ 60A 50A/ 70A
Input 3-6S LiPo 4-6S LiPo
BEC Output No No
Wires & Connectors
Input Wires Red-16AWG-500mm*1  Black-16AWG-500mm*1 Red-14AWG-400mm*1
 Black-14AWG-400mm*1
Output Wires Black-16AWG-75mm*3/No Black-14AWG-75mm*3
Input Connectors No No
Output Connectors 3.5mm Gold Connectors (Female) 3.5mm Gold Connectors
(Female)
Features
Throttle Calibration Supported Supported
ESC Programming Supported DIP Switch
DEO Supported Supported
Oneshot Mode Not Supported Not Supported
Timing Supported Supported
Light Color Not Supported Supported
Motor Rotation Not Supported Supported
Size & Weight
Size 66x21.8x11mm/ 73.5x21.8x11mm 48x30x15.5mm
Weight 45g/ 50g 56g

Applications 550mm Class Drone 650mm Class Drone

Established in 2002, Shenzhen TitanFlying Technology Co., Ltd (TTF) is located
in Shenzhen University Town, known as the Silicon Valley of China. We provide
cheap fpv drone and etc. Want to know esc price or more? Please contact us.

Minimum Order: 1 pieces
