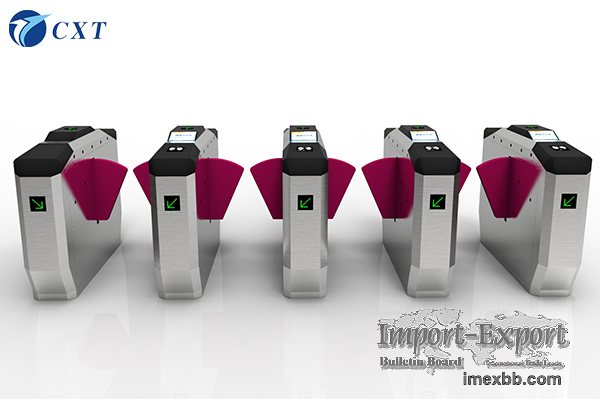

AFC Metro Flap Turnstile CXT-YW260T

AFC Metro Flap Barrier Gate Unique Features:
High end design. Model: CXT-YW240T ;CXT-YW140BX
Suitable for Mass transportation heavy duty AFC turnstile solution.
Solid and durable performance with CXT upgraded mechanism
Adopt control technology, which has stronger function and better expand-
ability.
Flow rate more fast，and switching speed up to less than or equal to 5s
Low noise, sound can be achieved ≤ 20 decibels.
Running more smooth, that is no shaking, no shake, no echo.
Ideal Turnstile solution for Metro,Subway,Airport

AFC Metro Flap Barrier Gate Main Functions and Features:
With auto failure checking and Logical judgment function, make the flap barrier
system easy for maintenance and operation.
Flexible to set the performance, up to dozens of species, and easy to expand.
Double protections of infrared and mechanical anti-pinch function.the
electronic turnstiles will automatically stop or rebound, sending out alarm
signal at the same time when a sudden barrier force is applied during system
reset.
Multi-modes alarm function, including illegal intrusion, anti-intrusion, anti-
trailing, overtime alarm, etc.
Anti-rush function, without receiving the open signal, turnstile arm locks
automatically.
Anti-Reverse function, when somebody attempts to passing reversely, the barrier
arm will quickly shut at the same time alarms.
Flexible access instruction function, high brightness light, and its humanized
prompt function make the passageway more characteristic.
Normal open and normal close can be controlled by code-dialing or external
Automatic detection and reset function: System will automatically cancel the
access right when detected no objects passing within the prescribed period of
time (adjustable).
Arm auto normal open when power is off(free passing), and meet the requirements
of the emergency.
Can be linked with a variety of control system, receiving the signal of the
relay switch.
Muti Passing modes: Can set uni-direction or bi-direction passing at will.
Strong environment adapting ability, can be installed in any harsh
environments, with strong self-protecting ability. such as weak current, Strong
light exposure, for rain and snow weather, typhoon or other environmental
change.

AFC Metro Flap Barrier Gate Expansible Functions:
Auto bidirectional counter: Automatically count the number present(customized)
Voice prompt(customized)
Barrier arm material and color can be customized

AFC Metro Flap Barrier Gate Specification
Material 304 stainless steel .2.0mm thickness Dimension
1600*300*1100(mm)
Passage width 570mm Net Weight 110KG
Verification mode Ticket,Fare,Token etc. Movement CXT-JW128
Power input AC 220V/110V Working voltage DC 24V
Pass rate 40 people/min in RFID mode Unlock time ≤0.2s

CXT is one of the famous turnstile suppliers in AFC Metro Flap Barrier Gate and
our security turnstiles prices is also reasonable!

Minimum Order: 1 sets
