Product DescriptionSpecification

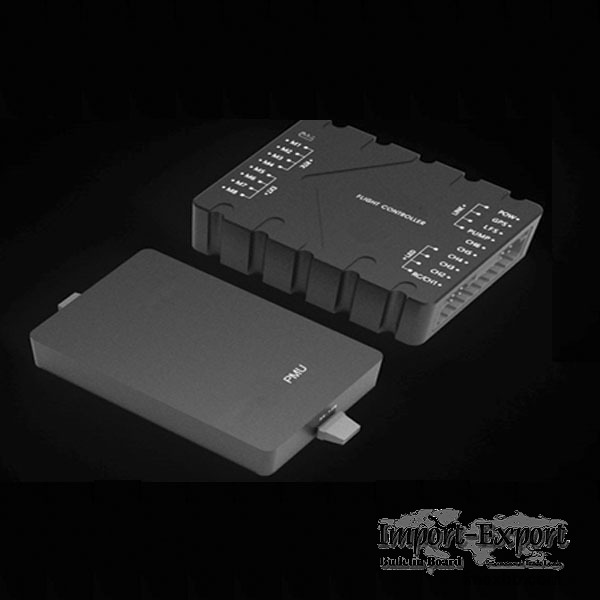

T1 flight quadcopter controller is a mature flight controller for agricultural
UAV. Diy quadcopter flight controller provides rich and practical function that
can meet the multiple requirements of the current agricultural UAV. By the
integration of high precision sensor, the application of advanced industrial
precision calibration algorithm as well as reasonable intelligent operation
mode, the more efficient, accurate and convenient way of plant protection work
can be realized.
Autonomous operation/ One key takeoff and landing
Autonomous operation according to the scheduled route, once the route is
planned, it can be reused. Automatic takeoff or landing can be achieved by a
switch.

Terrain following/ Height hold
The relative height between aircraft and crops can be maintained with high
precision radar. The track is guided by the integrated navigation system, which
can make sure that the flight is a straight line.

High positioning accuracy/ Long distance cruise
Support GPS, reliability is improved. Can automatically work even if out of the
sight distance.

Low voltage alarm/ Resume work
Support voice alarm when low voltage and record current position before auto
return. After replacing the battery, return to break point and resume work
automatically.

Pesticides monitoring/ Uniform spraying
Support monitor the pesticide dosage; voice alarm and auto return are performed
when there is no pesticide. After adding the pesticide, return to break point
and resume work automatically.

Reliable algorithm/ Stable attitude
With high precision IMU and robust control algorithm, the aircraft has stable
attitude and high anti-interference.

Monitoring / Broadcast function
Support cell phone ground station, which can measure the location of plots, set
parameters and monitor flight status, voice announcements is integrated in it.

Basic Parameters
Flight Mode Attitude mode; GPS mode; AB point operation mode
Applicable Models Quadcopter (Type I, II)
Hexacopter (Type I, V, and IY Co-Axial Double-propeller, Type YI Co-Axial
Double-propeller, Irregular-shaped 4-axis and 6-propeller)
Octocopter (Type I, V, and X Co-Axis Double-propeller, Irregular-shaped 6-axis
and 8-propeller)
ESC PWM ESC with output lower than 490HZ
Max. Output Channels 8
RecommendedRemote PCM or 2.4GHZ, at least 8 channels remote controller
Receivers S.BUS, PPM and PWM
NO. ofCPU cores 5-core
Protective Functions Semi-automatic operation mode
AB point operation mode
Breakpoint continued spraying function
Flow control function
Out of control or hovering or returning
Low power alarm and return landing protection
Flight Characteristics
Hovering Precision Horizontal Direction: ±2m
Vertical Direction: ±0.8m
Max Angle of Inclination 30°
Max. Yaw Speed 150°/s
Max. Vertical Speed 6m/s
Wind Tolerance Sustained Wind: Scale 3
Gust: Scale 4
Electro-mechanical Characteristics
Working Voltage 2-12S
Power Consumption <4W
Operating Temperature 10℃～60℃
Seismic Peak <1G

Shenzhen TitanFlying Technology Co., Ltd is a high-tech enterprise and
professional Aero-Model manufacturer that unifies product design, research
development, production, marketing and customer service. Our main product are
uamanned aerial vehicle, including professional drones and consumer drones, as
well as DIY components for drones.
