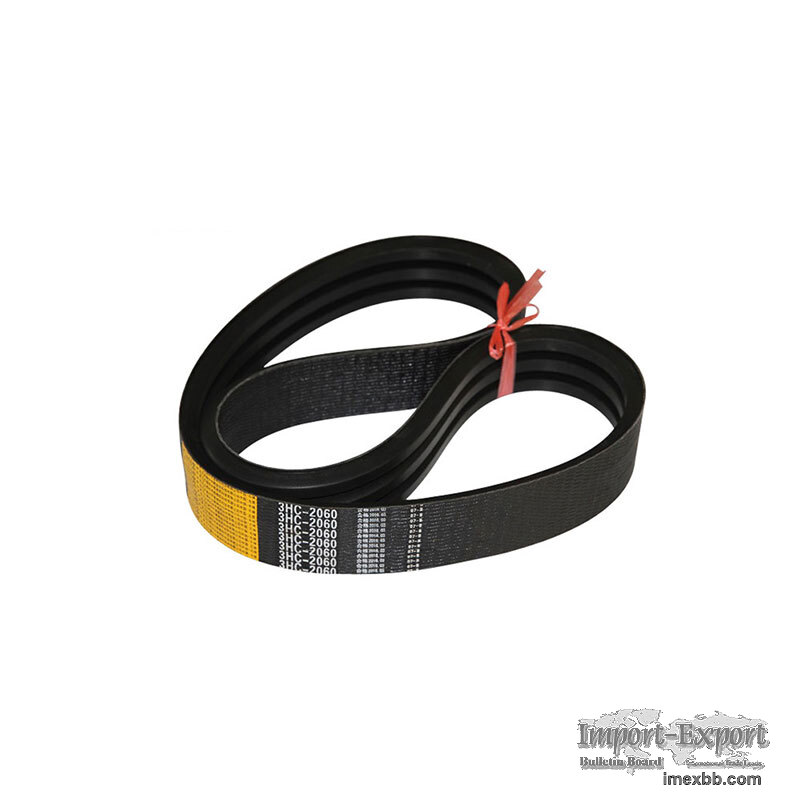

Agricultural Classic Wrapped Belts

Agricultural Classic Wrapped Belts
HA, HB, HC, HD Section

Application
Application areas: Combine Harvesters
Our high quality agricultural wrapped and REC (Raw Edge Cogged) Belts can be
widely used on almost all of popular combine harvesters as below listed
John Deere, Agco, Case, New Holland, Claas, Deutz-Fahr, Horwood Bagshaw,
Laverda, Massey Ferguson, Owatonna, Vassalli, Versatile, White, Gomselmash,
Rostselmash, Maxxi, Fieldking, Vardhman, Dronningborg, Sampo, etc. Once you
provided us belt part number,you will received our quotation.

Features of Zhongliang Agricultural Belt
Superior high power transmission capacity
Aramid cord reinforcement for high tensile strength
Lower elongation and slippage
Excellent performance under heavy shock load conditions
Suitable for drives with small pulley diameters
Suitable for heavy-duty, high-speed applications
Anti-static, oil and heat resistant
Temperature range: -25˚C to +100˚C
Manufactured in ISO 9001 registered facilitiy
We are Agricultural Belt Supplier.

Structure Details
No. Name Material Function
1 Cover Fabric Polyester Cotton Canvas Protect the linling tensile
member
2 Top Fabric Polyester Cotton Canvas Wear-resistant bias-cut
neoprene rubberised polyester cotton fabric
3 Filler Rubber NR, CR, SBR Maintain the top shape of the adhesive
tape
4 Cushion Rubber NR, CR, SBR Core material to pass the dynamic force
5 Tension Cord Polyester/ Kevlar Cord High tensile cord embedding
cushion rubber compound
6 Base Rubber NR, CR, SBR Support and protect the adhesive force
of the tensile member
7 Buttom Fabric NR, CR, SBR Maintain the bottom shape of the
adhesive tape

Structure Details
No. Name Material Function
1 Cover Fabric Polyester Cotton Canvas Protect the linling tensile
member
2 Top Fabric Polyester Cotton Canvas Wear-resistant bias-cut
neoprene rubberised polyester cotton fabric
3 Filler Rubber NR, CR, SBR Maintain the top shape of the adhesive
tape
4 Cushion Rubber NR, CR, SBR Core material to pass the dynamic force
5 Tension Cord Polyester/ Kevlar Cord High tensile cord embedding
cushion rubber compound
6 Base Rubber NR, CR, SBR Support and protect the adhesive force
of the tensile member
7 Buttom Fabric NR, CR, SBR Maintain the bottom shape of the
adhesive tape

Product Specifications
Section Dimensions Manufacturing Length Range
Top Width
(mm) Height
(mm) Pitch Width
(mm) Angle
 (Degree) Min. (inch/mm) Max. (inch/mm)
HA 13 8 11 40° Min. (inch/mm) Max. (inch/mm)
HB 16 11 14 40° 40 / 1000 590 / 15000
HC 24 14 21 40° 40 / 1000 590 / 15000
HD 32 19 27 40° 40 / 1000 590 / 15000

Reference Standards
Reference Standards
BS 3790, DIN 2215, RMA/MPTA IP-22, ISO 4184, IS 2494, ISO 3790, BS 3733, ASAE
211.5

Minimum Order: 50 pieces
