Airbag Clockspring

The airbag clockspring is a piece of wire harness that connects the main
airbag to the airbag harness. Since the main airbag needs to rotate with the
steering wheel, when the steering wheel is turned left or right, the wire
harness cannot be pulled off, so the connecting wire harness must be left
with a margin, and it is necessary to ensure that the steering wheel is
turned to the limit position to one side without being pulled off.

Key Features of Airbag Clockspring

An important part of connecting the electrical appliances between on the
steering wheel and steering column.

Can be rotated infinitely.

Connect the main airbag to the airbag harness.

How To Test Airbag Clockspring?
If the horn does not sound, first unplug the horn, connect the test light,
press the steering wheel. The test light does not turn on, check the fuse
and relay, if the relay does not respond when pressed, remove the airbag,
and directly put the horn button wire is grounded. If the horn sounds,
ground the horn wire above the airbag clockpring. If the horn does not
sound, check the airbag clockpring, and use a multimeter to measure the
continuity of the wire.

The airbag light is on. Under the computer test, if it shows that the
driver's airbag is disconnected, remove the airbag. If the wiring harness is
well, unplug the main airbag and use a 2 ohm resistor to put it into the
airbag tap. Clear the fault code. If it can be cleared, it means that the
airbag is faulty. It cannot be cleared. Pull the airbag clue below the
clockspring wire, connect the 2 ohm resistor, and clear the fault code. If
it can be cleared, the clockspring is broken. If it cannot be cleared, check
the wiring harness from airbag computer to clockspring.

The audio control buttons are generally not broken, the faulty probability
is very low, have the same inspection steps.

About abnormal noise. You can remove the clockspring and test the vehicle
again. It must be replaced it if there is no abnormal noise after removing
it.

As a professional auto spare parts company, we provide clock spring on
steering wheel, clock spring triton, car ignition components, clock spring
steering wheel, auto ignition coil, etc. For clock spring price or more
information, please feel free to contact us!

Minimum Order: 1 pieces

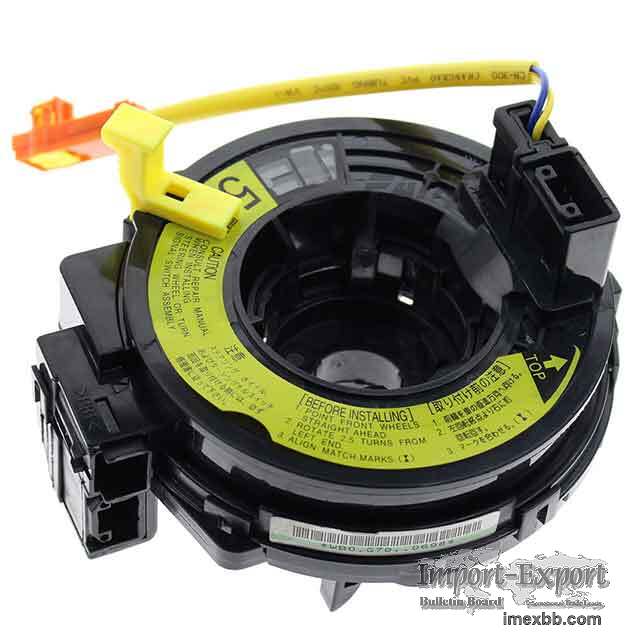

Airbag Clockspring
