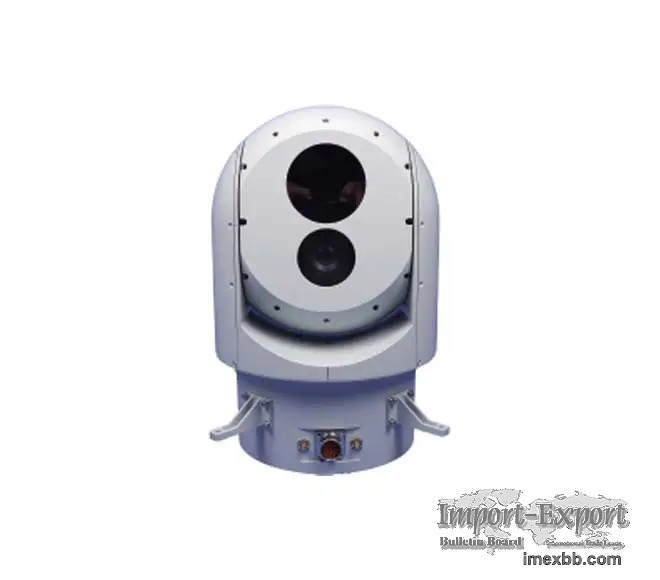

Airborne Surveillance System TAG640-C129T100-L5

Aircraft Camera Mounting Systems
Power line inspection, targeting, search and rescue, anti-smuggling, evidence
gathering, security, environment inspection, preventing forest fires,
navigation assistance, etc. The SCA200 Series is made to be equipped on a
variety of medium to large manned and unmanned drones, airships, and other
vessels or vehicles for aviation and maritime operations.

Specifications of Airborne System TAG640-C129T100-L5
Visible Camera
Detector 1/2.8 ” 1/1.8 ”
Lens 30× optical zoom(4.3mm~129mm) 38×(8mm-300mm)
Resolution 1080P（1920X1080） 1080P（1920×1080）
IR camera
Detector Uncooled LWIR detector Uncooled LWIR detector
Resolution 640X512 640X512
Focal length 25-100mm 25-75mm
Laser Sensor (Eye-safe Laser Ⅰ)
Laser Ranging Distance ≥5Km，Accuracy ±5m
Gyro-stabilized PT
Accuracy ≤0.3mrad（1σ）
Azimuth Range Nx360°
Elevation Range -90°~+30°
El angular Velocity ≥80°/s
Az angular Velocity ≥80°/s
El angular Acceleration ≥200°/s²
Az angular Acceleration ≥200°/s²
Interface
Video Output HD-SDI
Control RS422
Power
External Power 20~30V DC
Power Consumption ≤300W，Peak≤600W
Environmental
Operatin , g Temp -20℃～+65℃/-40℃～+65℃
Storage Temp -40℃～+85℃
Image Tracking
Integration Built-in
Function HD Auto Tracking /Auto Target Recognition（optional）
General
Weight ≤20kg
Dimension Φ280mm×430mm

As one of thermal imaging camera manufacturers, we can offer sorts of high
resolution thermal imaging camera for sale, anything you need, please leave us
a message.
