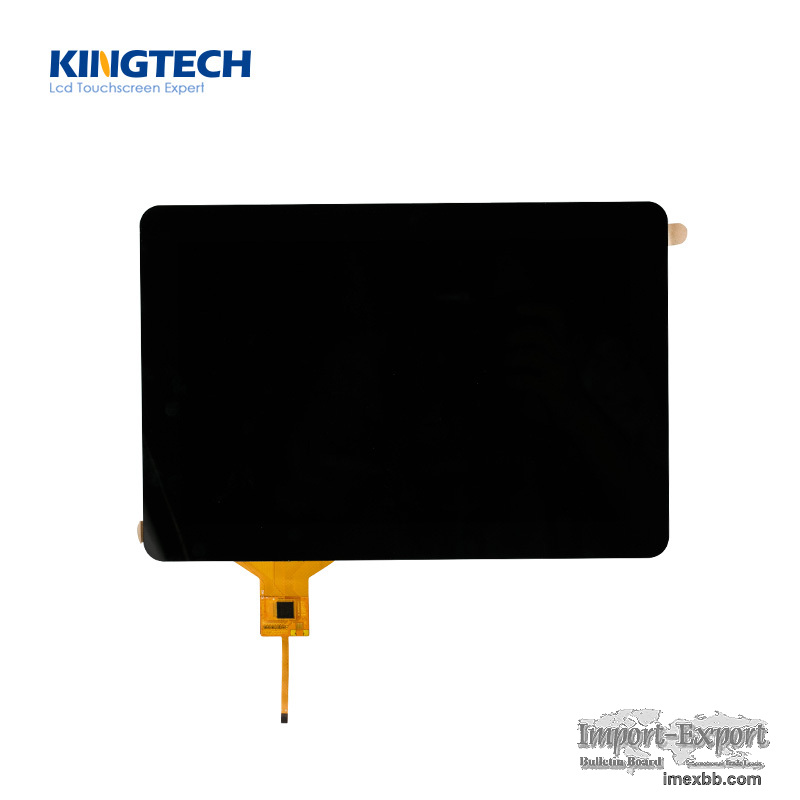

All View Angle 10.1 Inch 1280x800 LVDS Interface LCD Module

We make sensor and bond FPC in our own lcd panel factory and buy lcd screen
panel from professional lcd screen maker. We can do OCA and LOCA bonding in
our own facility.

Kingtech 10.1inch 1280x800 landscape IPS All / free/ wide viewing angle TFT
LCD display is one of our main products.

The 10.1" touch screen panel has capacitive touch and support I2C and USB
interfaces. The 10.1inch TFT screen has HDMI Board, it can be connected with
Raspberry Pi to operate. This 10.1inch IPS display can support -30~+80C for
operating temperature.

Kingtech Diaplay will provide the customers with qualified standard dispalys
and satisfying one-stop services. Any requests will be welcomed.

Features of All View Angle 10.1 Inch 1280x800 LVDS Interface LCD Module

1280x800 resolution/High definition resolution

All / Free / Wide viewing angle

IPS type

Wide operating temperature/ -30~+80C

Landscape display

Support capacitive touch 12C and USB interfaces

Support HDMI Board

Specification of All View Angle 10.1 Inch 1280x800 LVDS Interface LCD Module

Item  kingtech 10.1 inch ips1280x800 display
Mode , l No. PV101011LZR40J-C
Resolution  1280 x 800
Outline Dimension  229.80(W) x 149.00(H) x 5.95(T)
Active Are , a(mm) 216.96(W) x 135.60(H)
Brightness 500nits - 1000nits
Touch screen I2C / USB IPS capacitive touchscreen
Interface  8-BIT LVDS Interface
Viewing Angle All
LED life 50000h
Display Mode  Transmissive / Normally Black
Operating Tem , perature  -30℃ to +80℃
Storage Temperature  -30℃ to +80℃
Board HDMI board

Application of All View Angle 10.1 Inch 1280x800 LVDS Interface LCD Module

The 10.1inch 1280x800 500nits IPS TFT LCD display can be used for medical
devices, handheld equipment, industrial control, smart home, logistics
device, and E-Bike.
