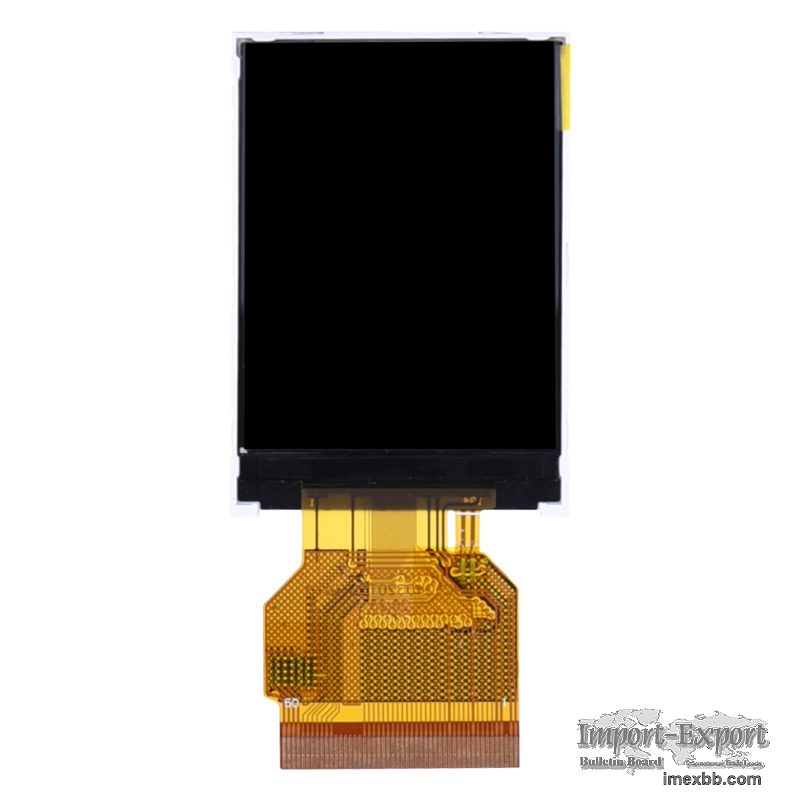

All View Angle 2.0 Inch 240x320 MCU/SPI/RGB TFT LCD Display

We make sensor and bond FPC in our own lcd panel factory and buy lcd screen
panel from professional lcd screen maker. We can do OCA and LOCA bonding in
our own facility.

Kingtech 2inch 240x320 / QVGA vertical TFT LCD module is a small size mcu
lcd display. This ST7789V driver IC display supports MCU, RGB and SPI
interfaces.

The TFT module does not have existing resistive touch and capacitive touch,
but the touch panel can be customized according to customer requirements.
This 2inch IPS 400nits screen can be used for medical equipment and
industrial device.

As one of top mcu lcd panel manufacturers, we promoise that we will provide
the customers with qualified standard lcd mcu dispaly and satisfying one-
stop services. Any requests will be welcomed.

Features of All View Angle 2.0 Inch 240x320 MCU/SPI/RGB TFT LCD Display

240x320 / QVGA resolution

IPS rgb lcd touchscreen

Full / all /wide viewing angle

Portrait / vertical type

Can custom resistive and capacitive touch screen

MCU, SPI, RGB interfaces

Application is for medical equipment

Small / Tiny display

Specification of All View Angle 2.0 Inch 240x320 MCU/SPI/RGB TFT LCD Display

Item 2.4inch rectangle TFT LCD module
Model No PV02004LZR50G
Resolution 240x320
Outline Dimension 36.05(W)x51.80(H)x1.78(T)
Active Area(mm) 30.60(W)x40.80(H)
Interface i80-system 8/16/18-bit MCU interface
3SPI/4SPI/ 16/18-bit RGB interface
Viewing Angle All
Driving IC ST7789V
Display Mode Transmissive / Normally Black
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃
Brightness 400nits
Touchscreen Can custom resistive and capacitive touch panel

Application of All View Angle 2.0 Inch 240x320 MCU/SPI/RGB TFT LCD Display

The 2.0inch portrait IPS / wide/full / all type TFT LCD screen can be used
for medical devices, handheld equipment, industrial control, smart home, and
smartwatch.
